Introduction
PA66 vacuum casting has become a key method for producing small-batch agricultural precision components, offering a balance among cost, speed, and dimensional accuracy—ideal for structural validation, durability testing, and rapid delivery. Xiamen Ruicheng focuses on material stability, dimensional precision, and surface consistency to ensure every batch meets the requirements for assembly, testing, and pre-mass-production evaluation.
Stability and consistency are the core objectives at every delivery stage.In agricultural machinery, harsh environments and long operating hours amplify any weaknesses in structure or material, making the delivery standards measurable, repeatable, and traceable. Through refined vacuum-casting processes and strict quality checks, the transition from prototype to mass production becomes much more reliable.The performance of vacuum-cast parts directly affects testing efficiency and mass-production decision cycles.
What key material-performance requirements must be met?
The material performance of PA66 vacuum-cast parts must remain stable between batches, with resin properties aligned to meet heat resistance, oil resistance, and fatigue requirements typical of agricultural conditions. Process control emphasizes mechanical-property consistency while maintaining strict cure-cycle and thermal-control execution to avoid property variation.Accurate material control is essential for long-term part reliability.
- Performance Matching Verification : Compare PA66 base-material properties to ensure deviations remain minimal.
- Resin Batch Validation : Confirm batch consistency to avoid variation across delivered components.
- Curing Parameter Recording: Track curing time and temperature for consistency.
- Environmental Stability Tests: Validate stability under high/low-temperature storage.
Good material control ensures stable performance under agricultural operating conditions.
What must be controlled to ensure defect-free surfaces?
Surface quality affects both assembly fit and long-term durability in outdoor conditions. During vacuum casting, avoiding sink marks, bubbles, cracks, and visible flow lines is crucial. Xiamen Ruicheng improves mold-surface reproduction, venting, and resin-flow balance to minimize defects while maintaining surface consistency suitable for testing, verification, or engineering display.High-quality surface output is a key indicator of process maturity.
- Texture Reproduction Check : Compare master mold and cast parts for surface consistency.
- Bubble & Sink Inspection: Check gating and thick-wall areas for defects.
- Edge Deburring: Ensure no burrs or flash interfere with assembly.
- Visual Consistency Check: Validate color and gloss across batches.
Better surface control produces cast parts that reflect final manufacturing results more accurately.

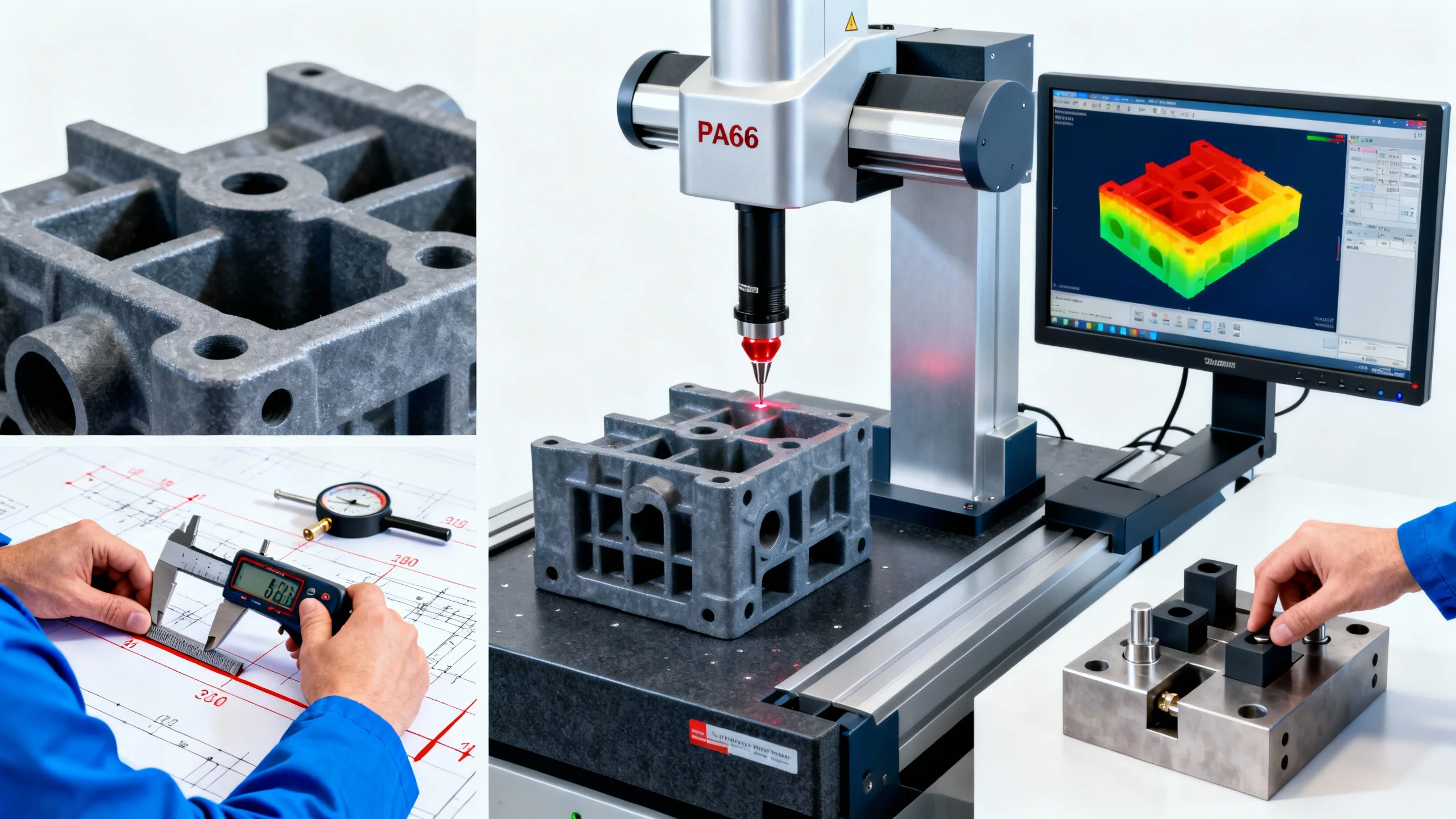

How should dimensional accuracy be verified?
Dimensional precision determines whether PA66 vacuum-cast agricultural parts can be used for assembly testing. Verification relies on CMM, calipers, and gauges to ensure fit-critical dimensions remain within tolerance. Shrinkage variances caused by resin selection, wall-thickness differences, and curing conditions must be compensated upfront in the design phase and validated before delivery.Stable dimensional accuracy is the foundation of reliable assembly.
- CMM Inspection Report : Compare results against part-drawing tolerances.
- Assembly-Fixture Testing: Validate hole spacing, clips, and guiding features.
- Shrinkage Compensation Review: Adjust CAD compensation based on resin characteristics.
- Boundary-Dimension Control: Confirm long or thin-wall features remain free from warpage.
Better dimensional accuracy results in smoother assembly validation.
Comparison Table for PA66 Vacuum-Cast Agricultural Parts
|
Key Delivery Criteria |
Requirement for PA66 Vacuum-Cast Parts |
Validation Method |
Acceptance Standard |
Application Stage |
| Material Stability | Strength & heat resistance verified | Resin tests / curing logs | Deviation ≤5% | Engineering validation |
| Surface Quality | No bubbles or sink marks | Visual inspection | Grade-A surface | Demo / prototype |
| Dimensional Accuracy | ±0.1–0.3 mm | CMM / fixtures | Assembly-fit OK | Functional testing |
| Durability Strength | No cracks under fatigue | Tensile / impact tests | Pass farm-equipment simulations | Field testing |
Want to confirm whether your current vacuum-casting delivery standards are compliant? Get a complete validation checklist now: contact us
Mass-Production Consistency Control
Achieving stable mass-production quality in vacuum casting requires consistency across mold reproduction, resin batches, environmental factors, and process parameters. Inspections follow production rhythm with batch-specific records for parameter tracking. Xiamen Ruicheng enhances consistency through digital process cards and batch-tracking systems, reducing risks caused by manual variation.Better consistency reduces risk when transitioning into injection-molding mass production.
1.Batch Traceability: Full production history ensures process and results remain trackable.
2.Cycle-Time Stability: Stable cycle parameters reduce process variation.
3.Locked Parameter Protocol: Cure and temperature settings remain fixed to prevent drift.
4.First-Article Comparison: Each batch validated against key dimensions.
FAQ
Q1: What are the core quality standards for PA66 vacuum-cast agricultural parts?
A: Dimensional tolerance ±0.1–0.3 mm, defect-free surfaces, and material consistency controlled through curing and resin batch management.
Q2: How do I connect with a supplier for PA66 vacuum-cast parts and request a quotation?
A: Send your 3D drawings and quantity needs; you’ll receive a DFM evaluation and quotation within 12 hours, with optional small-batch prototypes.
Q3: What is the MOQ and delivery time for PA66 vacuum-cast parts?
A: MOQ starts at 10 units; small batches deliver in 3–5 days, and larger batches in 7–15 days depending on mold complexity, with rush options available.
Conclusion
PA66 vacuum casting provides a fast, cost-effective, and accurate method for developing agricultural precision parts, supporting structural, assembly, and engineering validation with high reliability. Xiamen Ruicheng establishes a complete delivery-standard system covering material stability, surface quality, dimensional accuracy, and batch consistency to ensure prototype-to-mass-production fidelity.A rigorous and measurable delivery system accelerates agricultural manufacturers’ testing and mass-production decisions.As development cycles shorten, suppliers capable of linking prototype casting with mass-production readiness will offer stronger competitiveness and faster response.
