Introduction
Mold design not only determines the precision of parts but also directly influences the efficiency of the molding cycle. An optimized cooling system is often the key factor in reducing cycle time. In a competitive manufacturing industry, structural optimization helps companies respond quickly to market demands.
In injection molding, mold design is often the core of overall cycle control. Only by controlling details precisely at the design stage can stability and efficiency be ensured in production. This is why we provide customized mold solutions for our clients.
How Does the Cooling System Affect the Molding Cycle?
The cooling system is the most direct factor impacting the injection cycle in mold design. If cooling channels are uneven, parts may shrink inconsistently, extending molding time. By optimizing cooling circuits, manufacturers can ensure product quality while significantly reducing cycle time.
- Precise Cooling Design: Optimized channel layout accelerates heat exchange.
- Cycle Reduction: Faster cooling directly shortens molding cycles.
- Energy Saving: Reduces energy cost while increasing output.
- Product Consistency: Uniform temperature ensures part stability.
Cooling optimization makes production faster and more stable.
What Cycle Impacts Come from Mold Venting Design?
Poor venting often causes part defects or molding delays. Well-designed vents reduce scrap rates and avoid repeated machine adjustments that extend cycles. Incorporating effective venting structures into molds is crucial to improving overall production efficiency.
- Defect Reduction: Proper venting prevents burns or bubbles.
- Adjustment Efficiency: Less downtime from venting-related defects.
- Production Stability: Effective venting ensures controllable cycle time.
- Quality Improvement: Maintains surface finish and structural integrity.
Smooth venting means higher efficiency and stability.
How Does Cavity Number Determine the Injection Cycle?
The number of cavities directly affects the output per cycle. Optimized cavity design balances output with cooling time. Too many cavities can cause cooling challenges, while well-balanced layouts improve efficiency.
- Multi-Cavity Advantage: Higher production per cycle.
- Output Balance: Avoid excessive cycle time with proper cavity setup.
- Maintenance Costs: More cavities increase mold maintenance complexity.
- Product Precision: Balanced cavities ensure consistency.
Cavity design defines the balance between cycle and output.
Mold Design Factors Comparison
|
Factor |
Cycle Impact |
Cost Impact |
Quality Impact |
Stability |
| Cooling System | High | Medium | High | High |
| Venting Design | Medium | Low | High | Medium |
| Cavity Number | High | High | Medium | Medium |
| Runner Layout | Medium | Medium | High | High |
Expansion
In modern manufacturing, mold design is not only a technical issue but also a reflection of management efficiency. A well-engineered mold solution can save hundreds of thousands in production costs. When choosing partners, companies should pay close attention to mold development capabilities and integrated services.
1.Customized Design: Optimize cycle based on customer needs.

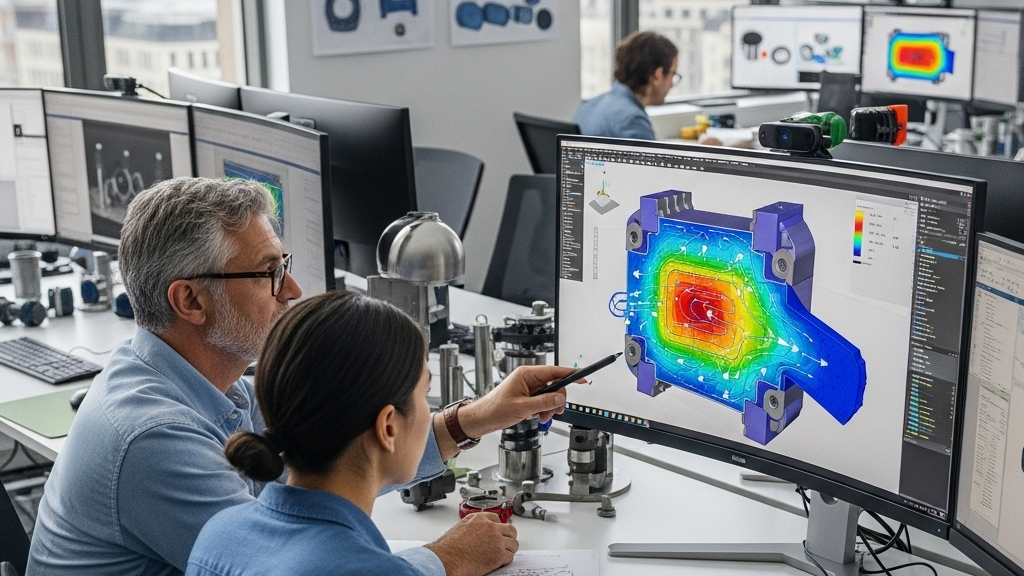

2.Structural Simulation: Use software to predict molding efficiency.
3.Rapid Iteration: Shorten time from design to mass production.
4.Full-Service Support: From design to maintenance, one-stop solutions.
Conclusion
Mold design defines the length of the injection cycle, and cycle optimization directly impacts output and cost. Only through scientific mold design can companies stay competitive. Our team provides end-to-end services from design to execution, ensuring every mold maximizes your ROI. In the future, continuous mold optimization will remain the key to enhancing manufacturing competitiveness.
For expert assistance in implementing for your production needs, visit our resource center or contact us. Let’s help you scale up your manufacturing with precision and efficiency!
Post time: Aug-28-2025
