Introduction
In PVC fitting injection molding, pressure resistance defines product safety and service life. Material formulation, molding temperature, and molecular orientation are all key factors. Only through precise molding processes and structural optimization can PVC fittings maintain stable performance under high pressure.
In addition to material improvement, mold design and cooling systems are equally crucial. Uniform wall thickness and balanced flow channels effectively minimize stress concentration. Optimized process control and structural balance are the core paths to achieving superior pressure performance.
How Does Material Formulation Affect Pressure Strength?
The pressure resistance of PVC fittings largely depends on formulation design. The ratio of plasticizers, type of stabilizers, and filler content directly influence molecular bonding strength. By scientifically adjusting the formulation, PVC fittings can achieve higher compressive strength without sacrificing flexibility.
- Controlled Plasticizer Ratio: Low-migration plasticizers improve long-term material stability.
- Use of High-Efficiency Stabilizers: Reduces degradation and enhances thermal endurance.
- Optimized Filler Loading: Prevents microcracks from excessive filler content.
- Improved Molecular Orientation: Ensures even stress distribution and delays fatigue.
Optimizing material formulation is the first step in improving PVC pressure performance.

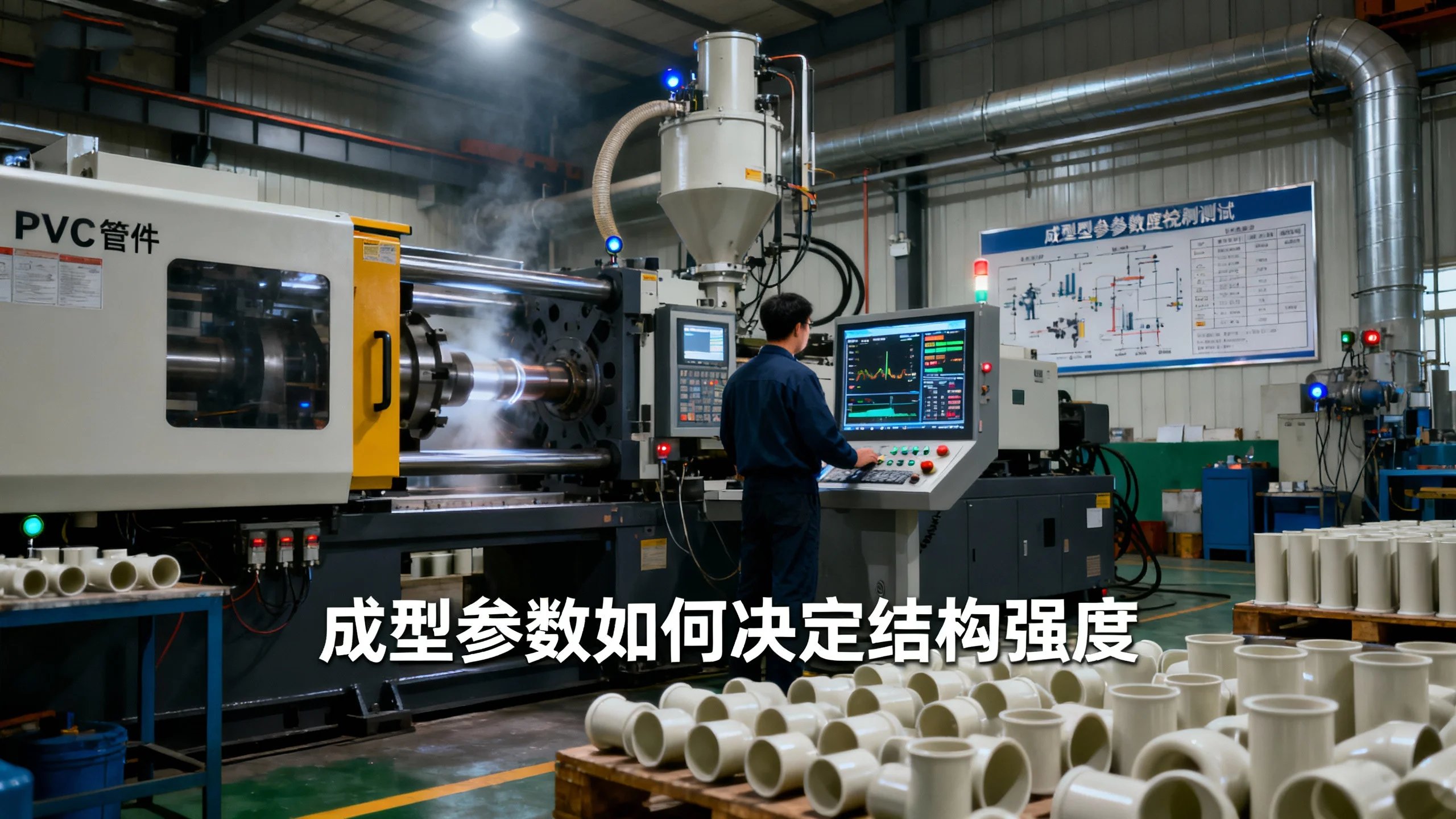

How Do Molding Parameters Determine Structural Strength?
Temperature, pressure, and cooling rate during injection molding significantly affect PVC’s microstructure. Improper cooling or uneven filling can lead to residual stress buildup. By dynamically controlling molding parameters, crystallinity and molecular orientation can be balanced to enhance compression performance.
- Precise Temperature Control: Prevents degradation and maintains molecular integrity.
- Optimized Holding Pressure: Promotes dense structure, avoiding voids or bubbles.
- Reduced Shear Rate: Minimizes localized stress.
- Extended Cooling Equilibrium: Enhances crystalline stability and overall strength.
Scientific parameter control ensures structural reliability from the source.
How Does Mold Design Affect Pressure Performance?
Mold design directly determines wall thickness uniformity and stress distribution. Gate position, runner length, and cooling layout all influence pressure variation. Optimizing mold design ensures balanced melt flow, resulting in fittings with superior pressure resistance and minimal stress.
- Balanced Gate Layout: Ensures even flow paths and prevents sink marks.
- Optimized Cooling Channels: Reduces shrinkage variations.
- Wall Thickness Control: Maintains consistent internal pressure.
- High-Thermal Conductivity Mold Steel: Enhances cooling efficiency and consistency.
Smart mold design is the key to producing high-pressure PVC fittings.
Comparison of Optimization Strategies
|
Optimization Focus |
Technical Method |
Cost Level |
Pressure Improvement |
Application Field |
| Material Formulation | Adjust plasticizer ratio | Medium | ★★★★☆ | High-pressure systems |
| Process Parameters | Optimize temperature & cooling | Low | ★★★☆☆ | Drainage pipelines |
| Mold Structure | Improve gates & runners | High | ★★★★★ | Industrial piping |
| Post-Treatment | Stress annealing & testing | Medium | ★★★★☆ | Long-term use |
Want your PVC fittings to achieve higher and more reliable pressure resistance? contact us now for tailored process solutions!
The Role of Post-Treatment and Testing
Post-treatment such as annealing and pressure testing is essential for verifying pressure resistance. By releasing internal stress and conducting gradual load testing, potential failures can be minimized. A systematic inspection protocol ensures that every PVC fitting meets traceable quality standards.
1.Annealing Process: Eliminates internal stress and enhances stability.
2.Hydrostatic Test: Determines ultimate pressure capacity.
3.Infrared Inspection: Detects density uniformity.
4.Fatigue Test: Ensures safety under long-term service.
Conclusion
The improvement of PVC fitting pressure resistance is the result of coordinated control over formulation, process, and mold design. Only through precision at every step can manufacturers produce fittings with high reliability and performance. Companies adopting digitalized molding management will gain a competitive edge in both consistency and cost efficiency.
For expert assistance in implementing high-pressure PVC molding solutions for your production needs, visit our resource center or contact us. Let’s help you scale up your manufacturing with precision and efficiency!
Post time: Nov-05-2025
