In sensor development, insufficient prototype accuracy is a common issue that directly impacts assembly validation and functional testing reliability. This problem becomes more critical in micro-structures and tight-tolerance designs, where traditional rapid prototyping methods struggle to maintain consistency, leading to misleading test results. Dimensional deviation not only affects validation outcomes but also delays the entire development timeline.
From a procurement perspective, the real concern is how to ensure first-time assembly success through proper process selection and supplier collaboration. Xiamen Ruicheng leverages extensive rapid prototyping experience to build a closed-loop solution from design analysis to final inspection, helping clients reduce trial-and-error costs. A systematic precision control strategy significantly improves prototype performance in real assembly scenarios.
How does insufficient prototype accuracy affect assembly testing results?
During sensor development, dimensional inaccuracies in prototypes often lead to interference fits, improper clearances, or functional failures, especially in rapid prototyping stages where tolerance control is critical. Dimensional errors typically accumulate and become evident during assembly, compromising the reliability of test results. Xiamen Ruicheng minimizes these risks through early-stage structural analysis and process optimization, ensuring prototypes better reflect real-world assembly conditions.
Error accumulation: Small deviations stack up across multiple components and impact overall structural integrity.
Assembly interference: Misaligned holes and shafts prevent smooth assembly or require force fitting.
Test distortion: Non-ideal assembly conditions lead to inaccurate performance data.
Rework cost: Repeated iterations increase both development time and budget.
Precision issues are essentially early indicators of assembly risks.
Which rapid prototyping processes are best for high-precision sensor components?
Different prototyping processes vary significantly in accuracy, surface quality, and material properties. Technologies like SLA (Stereolithography) and CNC machining are widely used in precision sensor components, but improper selection can negatively impact assembly fit. Choosing the right process is the foundation of achieving high-precision prototypes. Xiamen Ruicheng evaluates application requirements to recommend the most suitable process, balancing precision and cost.
SLA advantage: Ideal for complex geometries with accuracy up to ±0.05mm.
CNC stability: Suitable for functional testing requiring high strength and tight tolerances.
Material behavior: Different materials have varying shrinkage rates affecting final dimensions.
Post-processing impact: Finishing and curing steps can influence dimensional accuracy.
Process selection defines the achievable precision level.
How can supply chain collaboration ensure high-precision assembly validation?
Achieving high-precision assembly testing requires more than just advanced manufacturing; it depends on coordination across the supply chain, including standardized dimensional inspection and engineering validation processes. Only a fully integrated workflow from prototyping to inspection ensures reliable validation results. Xiamen Ruicheng implements end-to-end control to guarantee traceable accuracy and dependable outcomes.

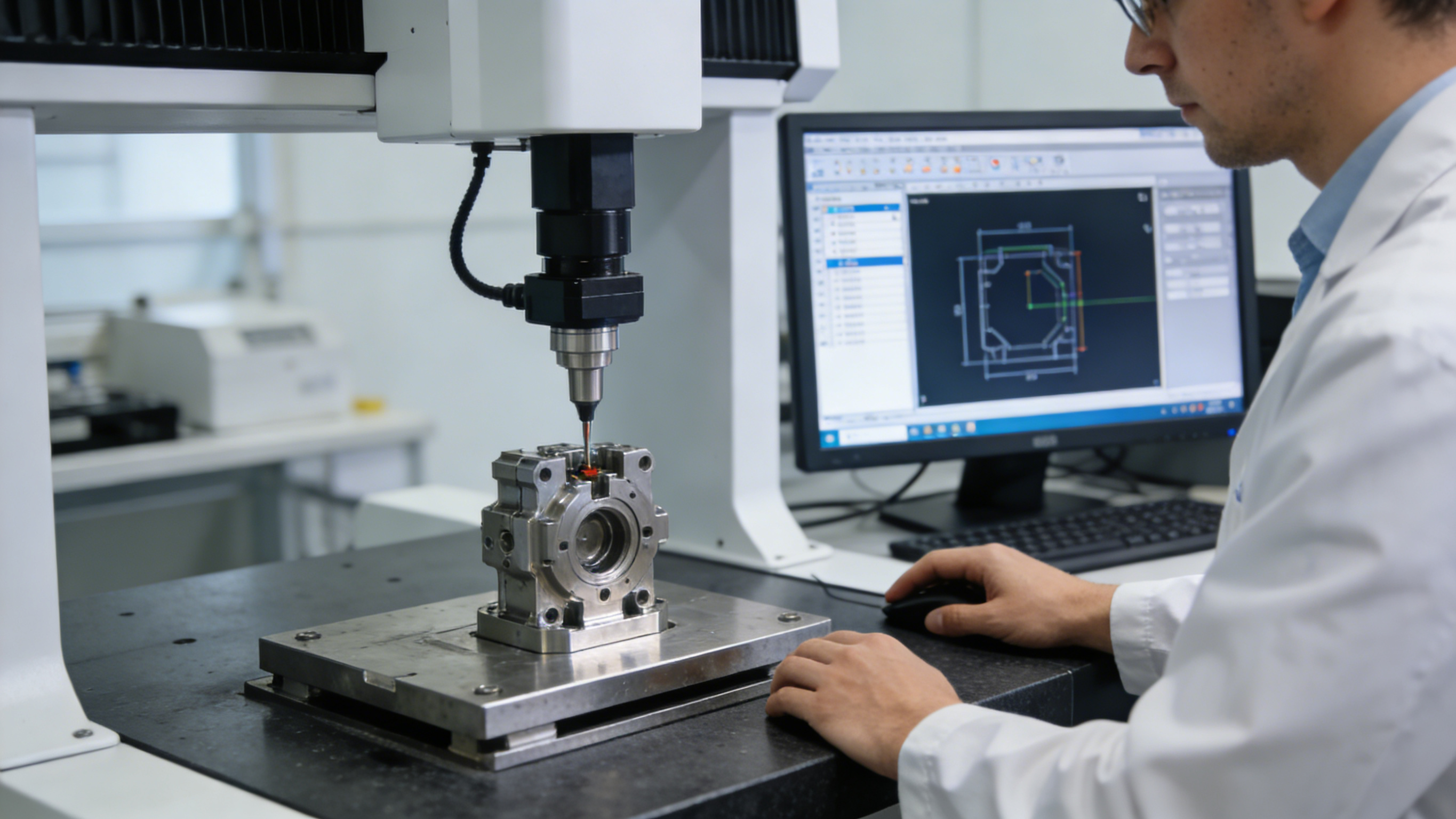

Inspection first: CMM verification ensures critical dimensions meet design specifications.
Data feedback: Test results are used to refine both design and process parameters.
Collaborative communication: Aligning engineering and procurement reduces misinterpretation.
Rapid iteration: Faster prototyping cycles accelerate validation efficiency.
Collaboration determines both validation speed and success rate.
Comparison of Prototyping Solutions for Assembly Testing
|
Solution Type |
Accuracy Range |
Assembly Fit |
Lead Time |
Cost |
Application Stage |
| SLA Prototype | ±0.05mm | High | Fast | Medium | Structural validation |
| CNC Machining | ±0.01mm | Very High | Medium | High | Functional testing |
| SLS Printing | ±0.1mm | Medium | Fast | Medium | Appearance validation |
| FDM Printing | ±0.2mm | Low | Fast | Low | Concept validation |
Choosing the right solution directly impacts testing reliability contact us
How to Build a High-Precision Sensor Prototyping System
In modern sensor development, relying on a single manufacturing capability is no longer sufficient to meet complex assembly validation needs. A systematic prototyping approach is required. Xiamen Ruicheng establishes standardized workflows across design optimization, process selection, and inspection verification to ensure every prototype is production-relevant. A systematic approach is the true solution to precision challenges.
1.Design optimization: Conduct DFM analysis to eliminate tolerance risks early.
2.Process matching: Select the best manufacturing method based on geometry and function.
3.Precision inspection: Use advanced equipment to verify critical dimensions.
4.Closed-loop iteration: Continuously refine designs based on testing feedback.
FAQ
Question 1: What is the core accuracy standard of your sensor prototyping service?
Answer: Xiamen Ruicheng achieves ±0.05mm tolerance, with critical dimensions verified by CMM inspection and supported by multi-process integration to ensure assembly compatibility for high-precision sensor applications.
Question 2: What information is required to get a quotation quickly?
Answer: Please provide 3D files (STEP/STL), tolerance requirements, and application details. Submissions can be made online, and a full quotation with process recommendations is typically delivered within 12 hours.
Question 3: What are the lead times for different order volumes?
Answer: Small-batch prototypes are usually delivered within 3–5 days. For larger orders, lead time depends on quantity and complexity. Expedited services can reduce delivery to as fast as 48 hours.
Question 4: What happens if the prototype does not meet assembly requirements?
Answer: Xiamen Ruicheng offers dimensional re-inspection and root cause analysis. If responsibility is confirmed, we provide free adjustments or remanufacturing, along with optimization suggestions for improved results.
Question 5: Do you support customization for special materials or conditions?
Answer: Yes, we support a wide range of engineering materials and custom requirements. Provide your operating conditions, and we will deliver a feasibility analysis and cost estimate within 3 working days.
Conclusion
Insufficient prototype accuracy in sensor components is not just a manufacturing issue but a system-level challenge involving design, production, and validation. By selecting the right rapid prototyping process and establishing a robust inspection and feedback loop, assembly testing success rates can be significantly improved. The real solution lies in building a repeatable high-precision development system. Xiamen Ruicheng delivers end-to-end support to help clients transition from prototyping to reliable mass production with confidence.
For expert assistance in implementing for your production needs, visit our resource center or contact us. Let’s help you scale up your manufacturing with precision and efficiency!
