Agricultural machinery operates under continuous load, long duty cycles, and harsh outdoor conditions, placing extremely high demands on the stability of injection-molded structural parts. Once creep deformation occurs, it often leads to misalignment, functional degradation, or even complete equipment failure. Creep resistance has become a critical threshold determining whether agricultural machinery plastic parts can deliver long-term reliability.
In real procurement scenarios, many buyers still focus mainly on material datasheets and short-term strength indicators, overlooking time-dependent deformation under real working conditions. Truly reliable agricultural injection-molded structural parts require a systematic solution combining material, design, and process from the very beginning.
Why Are Injection-Molded Structural Parts in Agricultural Machinery Prone to Creep Failure?

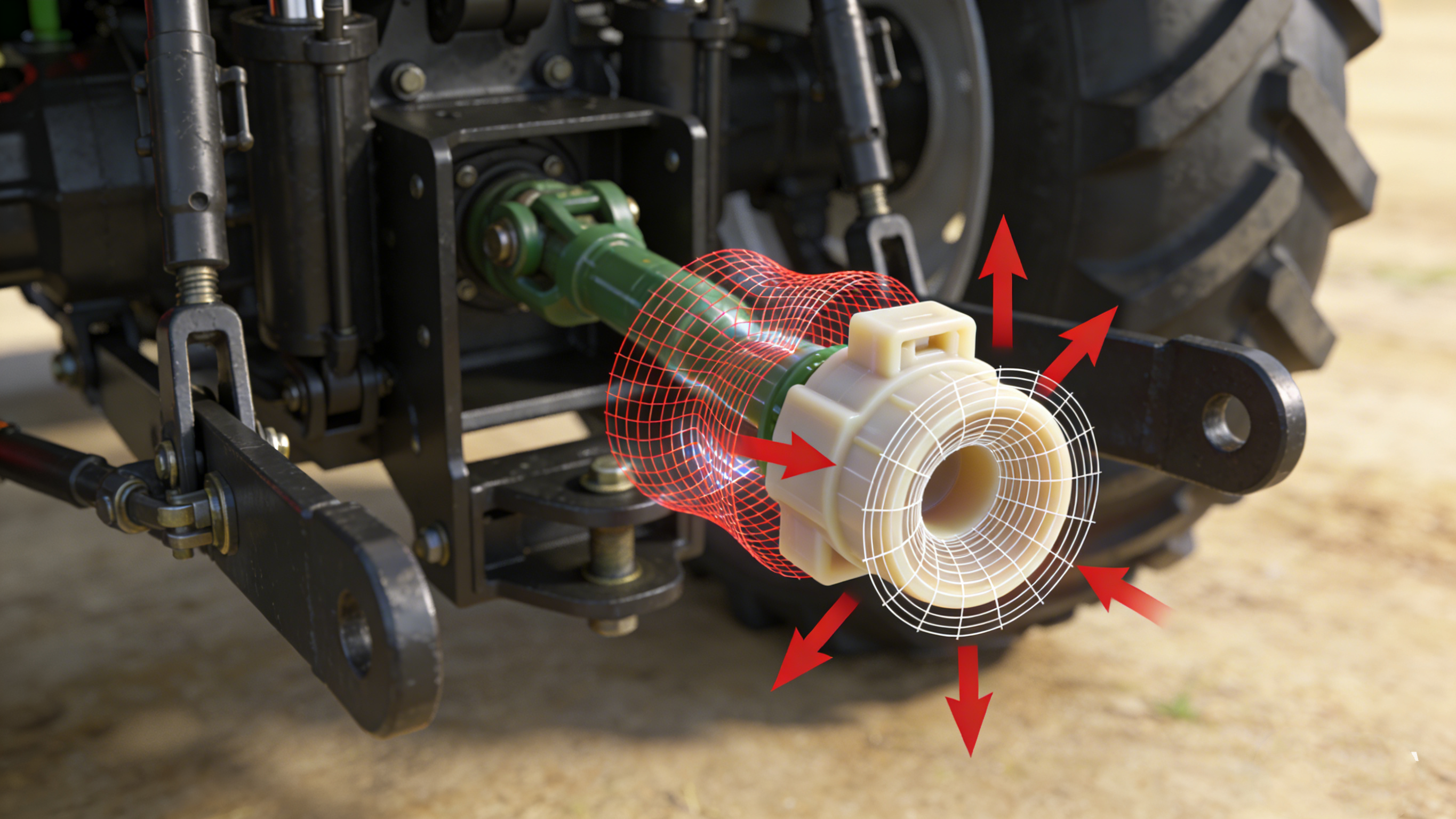

Structural components in agricultural machinery are commonly subjected to constant stress, cyclic loading, and fluctuating ambient temperatures, all of which accelerate molecular movement inside polymers. If selection is based solely on short-term mechanical performance, long-term deformation risks are almost inevitable. Creep is not a material defect but the result of overlooked service conditions amplifying structural weaknesses. In many failure cases, ignoring the relationship between creep behavior and long-term load is the core cause.
Load duration: Fixed or sustained loads in agricultural machinery continuously drive molecular displacement.
Environmental interaction: Temperature, humidity, and chemicals jointly weaken time-dependent stability.
Structural amplification: Weak cross-sections magnify creep-induced deformation.
Selection bias: Overemphasis on initial strength masks long-term risks.
Creep issues are fundamentally the combined effect of time and load and must be identified at the selection stage.
How Can Material Selection Determine Creep Resistance in Injection-Molded Parts?
Under identical stress conditions, different plastics exhibit significantly different deformation rates over time, which directly reflects their creep resistance. Without evaluating long-term material behavior during procurement, structural failure risks increase substantially. Creep resistance is not synonymous with high strength but reflects molecular structural stability over time. Proper application of glass fiber reinforced plastics and semi-crystalline resins can greatly improve long-term dimensional stability.
Molecular structure: Higher crystallinity reduces molecular slippage under sustained stress.
Reinforcement systems: Glass fiber or mineral fillers effectively restrain time-dependent deformation.
Temperature sensitivity: Creep curves within the actual service temperature range are most meaningful.
Aging synergy: Thermal aging further accelerates creep if not properly controlled.
The core of material selection is not “stronger,” but “more stable.”
How Does Structural Design Amplify or Suppress Creep Risk?
Even with suitable materials, poor structural design can still trigger significant creep during use. Agricultural injection-molded structural parts often serve as load-bearing, positioning, or connecting elements, making geometry critical to stress distribution. Structural design is the key lever that determines whether creep is amplified or restrained. By optimizing wall thickness design and rib layout, long-term deformation risks can be greatly reduced.
Uniform wall thickness: Prevents local stress concentration that accelerates creep.
Rib strategy: Uses geometry rather than excessive thickness to share loads.
Load paths: Ensures forces are transmitted through the most stable structural routes.
Assembly preload: Excessive assembly stress can prematurely initiate creep.
A good structure is not heavier, but smarter at sharing time-induced stress.
Key Comparison Points for Selecting Creep-Resistant Injection-Molded Parts
|
Comparison Dimension |
Standard Plastic Parts |
Glass-Fiber Reinforced |
Structurally Optimized |
Systematic Solution |
| Long-term dimensional stability | Low | Medium | Medium–High | High |
| Creep risk control | Passive | Material-based | Design-based | Material + Design |
| Service life consistency | Unstable | Relatively stable | Stable | Highly consistent |
| Failure predictability | Low | Medium | Medium–High | High |
Choosing a solution truly suited for long-term agricultural machinery operation often requires moving beyond single-material or price comparisons. For a systematic evaluation, please contact us
A Practical Path from Selection to Implementation
Procurement decisions for agricultural injection-molded structural parts should not stop at sample approval or datasheet confirmation but should extend across the entire service lifecycle. Xiamen Ruicheng engages early in projects to analyze real operating conditions and help customers identify long-term risks in advance. Shifting creep control to the design and validation stage is far more cost-effective than post-failure correction.
1.Operating condition mapping: Select materials based on real load and time exposure.
2.Material matching: Prioritize long-term stability over short-term strength.
3.Structural synergy: Use design to reduce time-dependent material stress.

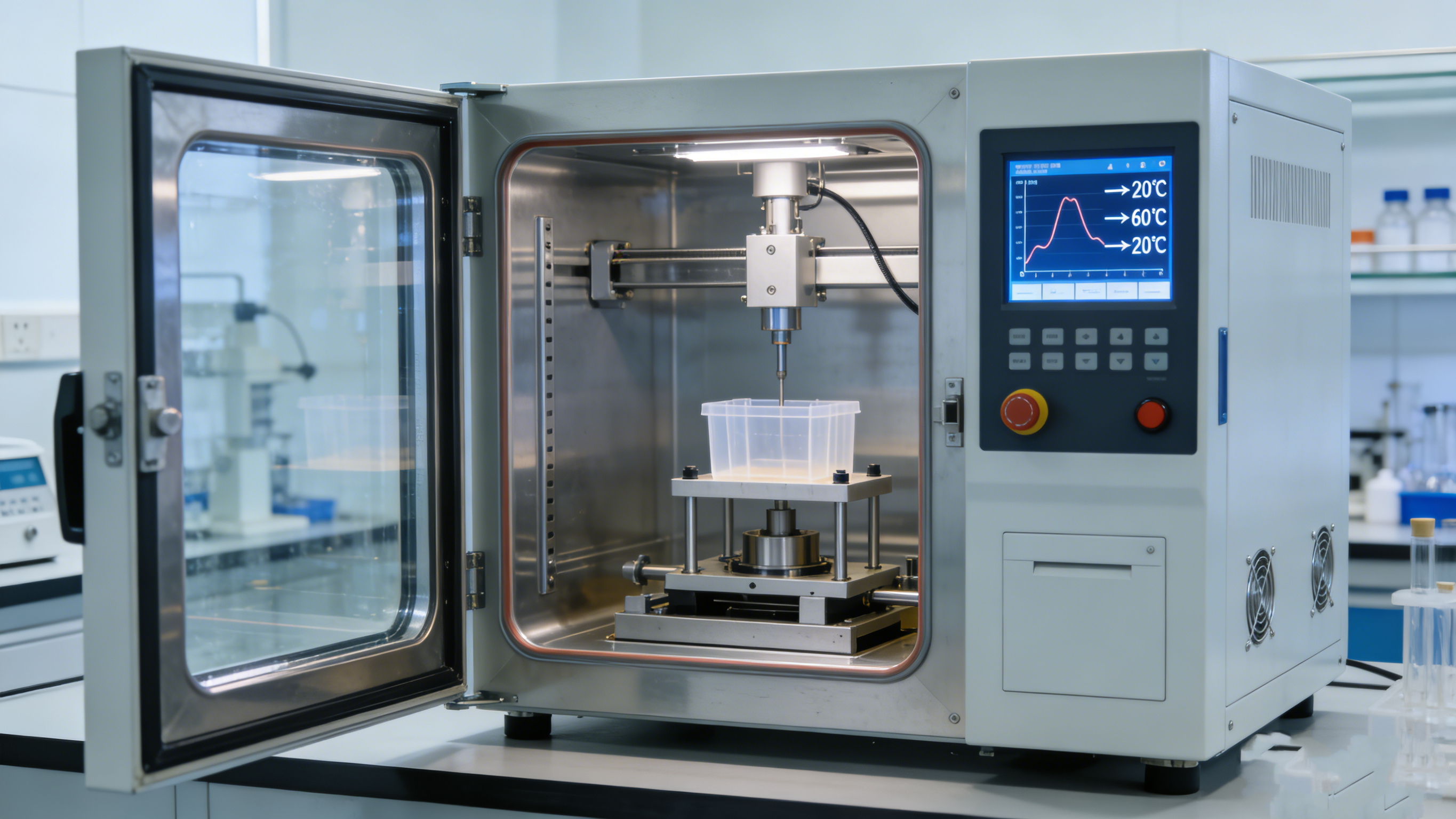

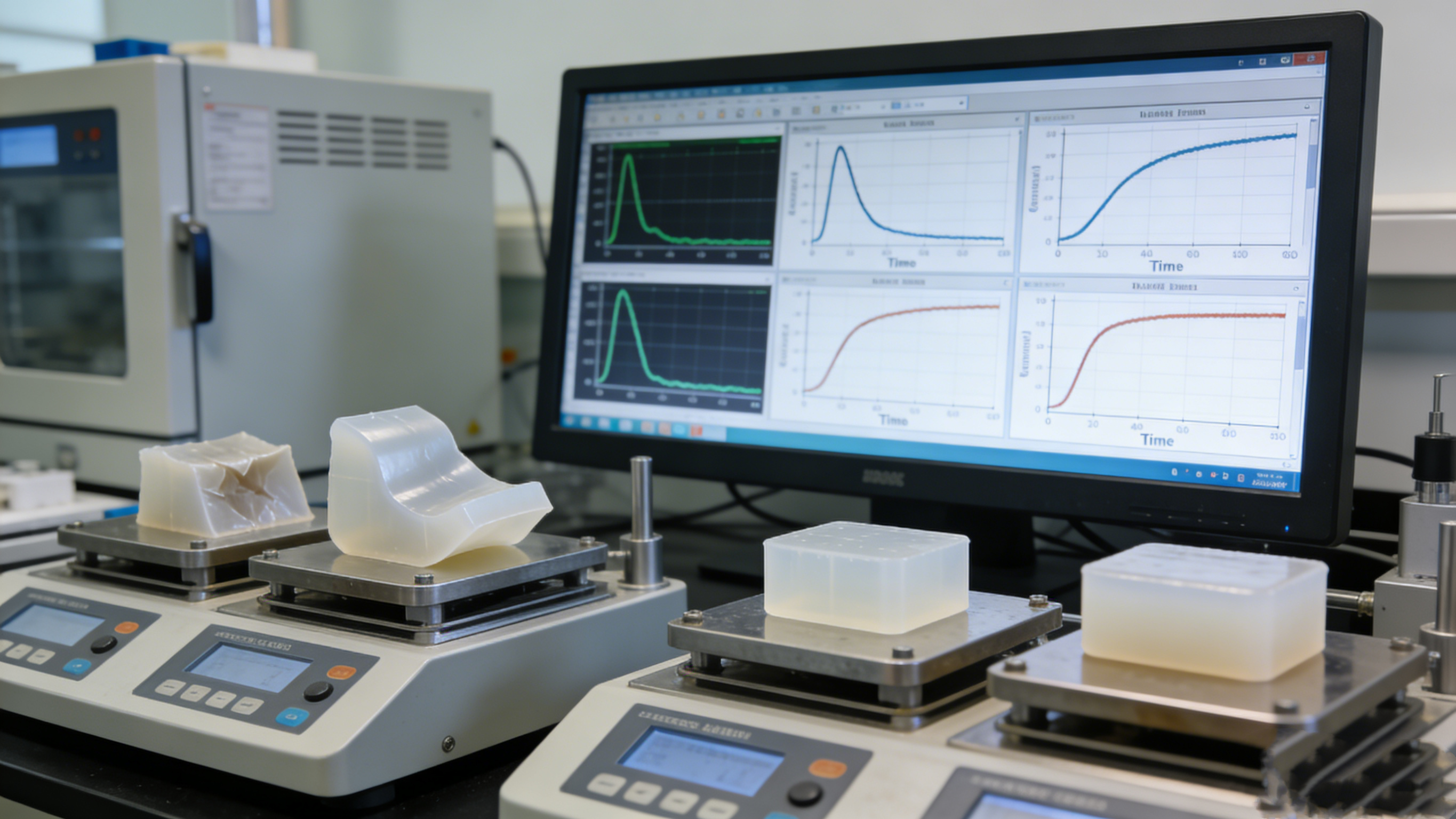

4.Verification strategy: Validate creep resistance with data rather than assumptions.
FAQ Module
Q1: What are the core advantages of your creep-resistant injection-molded structural parts for agricultural machinery?
A: By integrating material selection, structural design, and long-term testing data, we define stable deformation boundaries under sustained loads and ensure batch-to-batch consistency through internal validation systems, meeting long-term agricultural machinery requirements.
Q2: What information is required to quickly start a procurement discussion?
A: Basic drawings, application descriptions, load conditions, and expected service life are needed. Once submitted through our technical channels, our engineering team provides rapid evaluation and optimization feedback with a clear quotation timeline.
Q3: How do MOQ and lead time vary with different purchase volumes?
A: Trial production and mass production follow differentiated strategies, supporting small batches for validation and stable capacity for volume orders, with delivery timelines clearly defined in agreements.
Q4: How are deformation or failure issues handled after delivery?
A: A structured failure evaluation process determines responsibility, followed by replacement or optimization solutions, with response times defined contractually.
Q5: Can you provide customized solutions for special agricultural operating conditions?
A: Yes, we support customization based on specific loads, environments, or assembly requirements. Detailed usage data is required, and customization timelines and cost adjustments are transparently communicated during the proposal stage.
Conclusion
The creep resistance of agricultural injection-molded structural parts defines the reliability boundary of machinery under long-term operation. No single material or parameter can fully address time-dependent deformation risks; a system-level approach is essential. Embedding creep control into selection, design, and validation processes marks a mature procurement strategy. Working with engineering-driven suppliers like Xiamen Ruicheng significantly reduces long-term operational uncertainty.
