Agricultural machinery components operate under continuous load, vibration, and harsh environmental conditions, making material selection a decisive factor for reliability and lifecycle cost. Glass fiber reinforced PBT injection materials have become a mainstream option due to their balanced mechanical strength and processing stability.
The real challenge is not the datasheet itself, but whether the material can deliver consistent performance under real operating conditions.
As buyers move beyond product display comparisons, they often realize that parameter stacking does not reduce risk. Shifting from “buying materials” to “choosing a solution” defines the true decision-making path for injection molded agricultural parts.
Is glass fiber reinforced PBT truly suitable for complex agricultural working conditions?
Glass fiber reinforced PBT is widely adopted in agricultural machinery parts because it balances strength, fatigue resistance, and dimensional stability. Compared with standard engineering plastics, it maintains structural integrity under heat, oil exposure, and long-term mechanical stress, which explains the continued adoption of fiber reinforced plastics in agricultural applications. The real differentiation lies in how well shrinkage, warpage, and internal stress are controlled during mass injection molding. In practice, the performance of PBT material depends heavily on formulation-process synergy rather than a single performance indicator.
Operating adaptability：The material must retain mechanical stability under dirt, oil, and thermal cycling.
Long-term durability：Glass fiber structures must resist micro-crack propagation under cyclic loads.
Processing consistency：Material flow behavior directly affects yield rates in mass production.
System compatibility：Material performance must align with mold design and molding parameters.
Choosing the right glass fiber reinforced PBT is fundamentally about reducing uncertainty in long-term equipment operation.
What hidden risks come with different glass fiber content levels?
During material selection, glass fiber content is often treated as a “higher is better” performance label, yet this assumption conceals significant risks. While increased fiber content enhances stiffness, it also amplifies anisotropy issues inherent in injection molding. If fiber orientation does not align with load paths, structural failure may occur earlier rather than later. High glass fiber formulations also accelerate mold and equipment wear, an often-overlooked cost factor during material selection.
Structural compatibility：Glass fiber ratios must match wall thickness and load distribution.
Process window sensitivity：High fiber materials respond sharply to temperature and shear changes.
Equipment wear：Long-term production may increase screw and cavity abrasion.
Cost balance：Total manufacturing cost must be evaluated beyond raw material price.
Glass fiber percentage is not a performance contest, but a system-level risk management decision.
How does injection molding capability determine whether material value is realized?

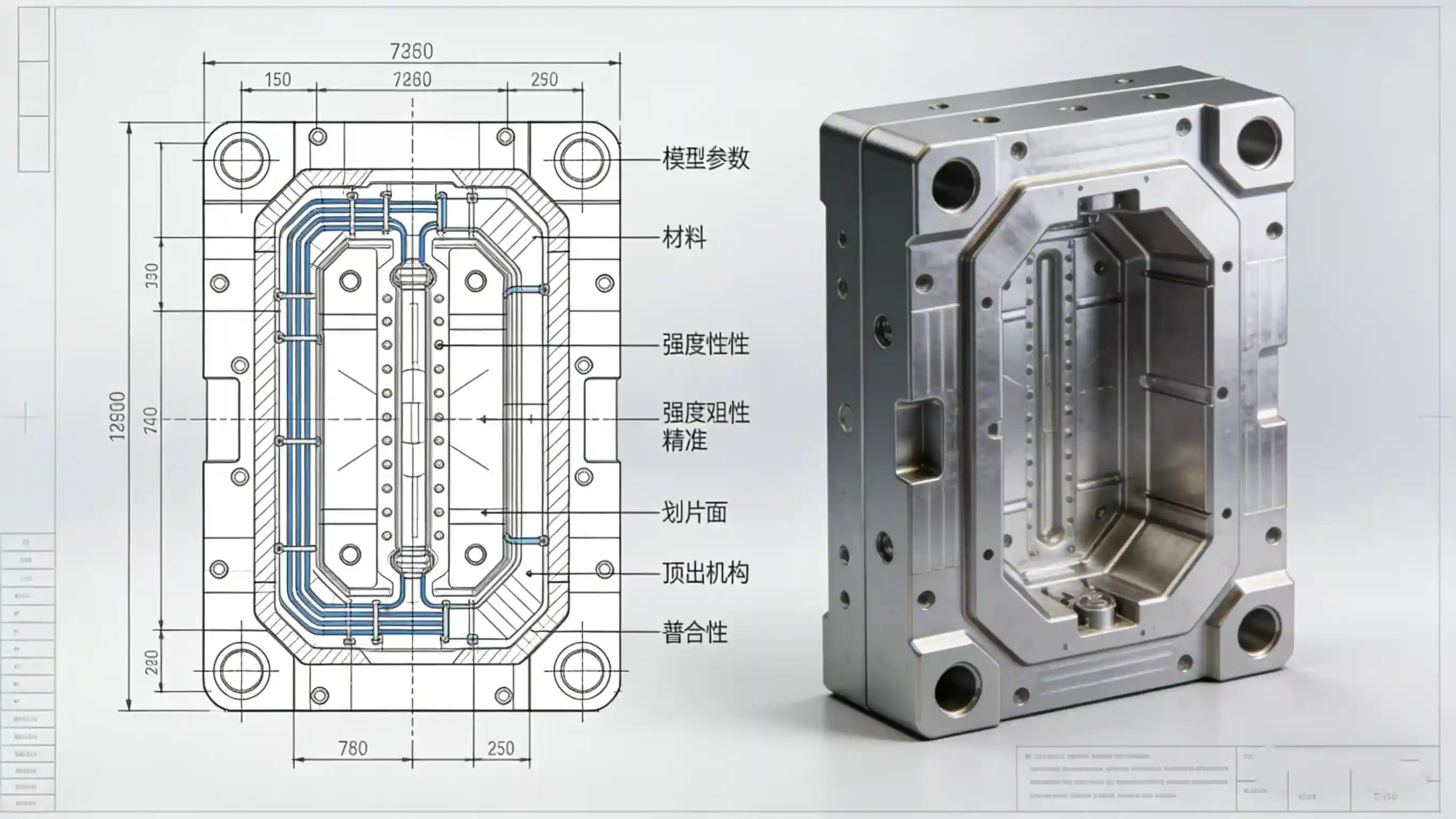

Even with the right glass fiber reinforced PBT, insufficient injection molding capability prevents its advantages from being fully realized. Agricultural machinery parts are often large and structurally complex, requiring precise flow balance and cooling control—true differentiators in injection molded parts processing. Material performance only translates into consistent products when supported by a stable process system. Manufacturers such as Xiamen Ruicheng emphasize mold flow analysis, process validation, and pilot runs to absorb risks before mass production rather than correcting issues afterward.
Mold flow validation：Identifies potential filling and warpage risks before tooling release.
Process control：Locks parameter windows to ensure batch-to-batch consistency.
Pilot production：Verifies real assembly and operating conditions.
Continuous optimization：Adjusts material-process combinations based on field feedback.
True value lies not in the material itself, but in the capability to apply it correctly.
Key Differences Among Agricultural PBT Glass Fiber Injection Solutions
|
Comparison Dimension |
Standard PBT |
PBT + 20% GF |
PBT + 30% GF |
Customized PBT GF Solution |
| Rigidity | Medium | High | Very High | Optimized by application |
| Dimensional Stability | Average | Good | Prone to warpage | High consistency |
| Processing Difficulty | Low | Medium | High | Controlled |
| Long-term Reliability | Average | Good | Design-dependent | Lifetime-oriented |
| Total Cost | Low | Medium | High | Optimized TCO |
Wondering which solution best fits your agricultural machinery project? Feel free to contact us
Decision Support from Material Selection to Mass Production
Agricultural machinery procurement is not a one-time material purchase, but a continuous decision process from validation to mass production. The value of glass fiber reinforced PBT injection materials is unlocked only when application scenarios and manufacturing boundaries are fully understood. A mature supplier intervenes early in risk identification instead of merely providing quotations. Xiamen Ruicheng follows this collaborative logic to ensure manufacturability and long-term stability.
1.Requirement breakdown：Clarify real operating conditions and failure risks.
2.Solution validation：Confirm feasibility through samples and pilot assemblies.
3.Production assurance：Establish stable delivery and quality systems.
4.Long-term support：Continuously optimize solutions alongside product iterations.
Frequently Asked Questions (FAQ)
Question 1: What is the core advantage of your glass fiber reinforced PBT injection parts for agricultural machinery?
Answer: We align glass fiber ratios, mechanical performance ranges, and dimensional control standards with real operating conditions, supported by pilot testing and verification to ensure long-term performance.
Question 2: What information is required to customize a glass fiber reinforced PBT solution?
Answer: Typically, part drawings, application environment details, expected annual volume, and assembly requirements are needed. Xiamen Ruicheng’s engineering team can quickly assess feasibility and propose optimized solutions.
Question 3: How are MOQ and lead time managed for different order volumes?
Answer: Small batch pilot runs are supported for validation, while mass production schedules are aligned with annual demand forecasts to ensure stable delivery.
Question 4: How are quality or consistency issues handled after delivery?
Answer: Clear quality criteria are established upfront, and once issues are confirmed, corrective actions are initiated promptly to minimize production impact.
Question 5: Do you support long-term optimization and technical upgrades?
Answer: Yes, we continuously optimize material formulations and injection processes in line with product upgrades or changing operating conditions
Conclusion
Selecting glass fiber reinforced PBT for agricultural machinery parts is a system-level decision rather than a simple material comparison. Only by integrating material performance, processing capability, and real operating conditions can long-term risks be effectively reduced. The most reliable choice is a partner capable of accompanying the entire decision journey. Xiamen Ruicheng helps customers convert material advantages into sustainable product competitiveness.
For expert assistance in implementing for your production needs, visit our resource center or contact us. Let’s help you scale up your manufacturing with precision and efficiency!
Post time: Jan-09-2026
