High-voltage electrical equipment places extremely strict requirements on insulation safety and long-term operational stability, and material and process selection directly determine whether a product can pass system-level validation. From Xiamen Ruicheng’s long-term cooperation with electrical equipment manufacturers, PBT insulated injection molded parts have become a core foundational component in high-voltage systems.Under conditions where high voltage, temperature rise, and complex operating environments coexist, insulation stability is far more critical than initial performance parameters.

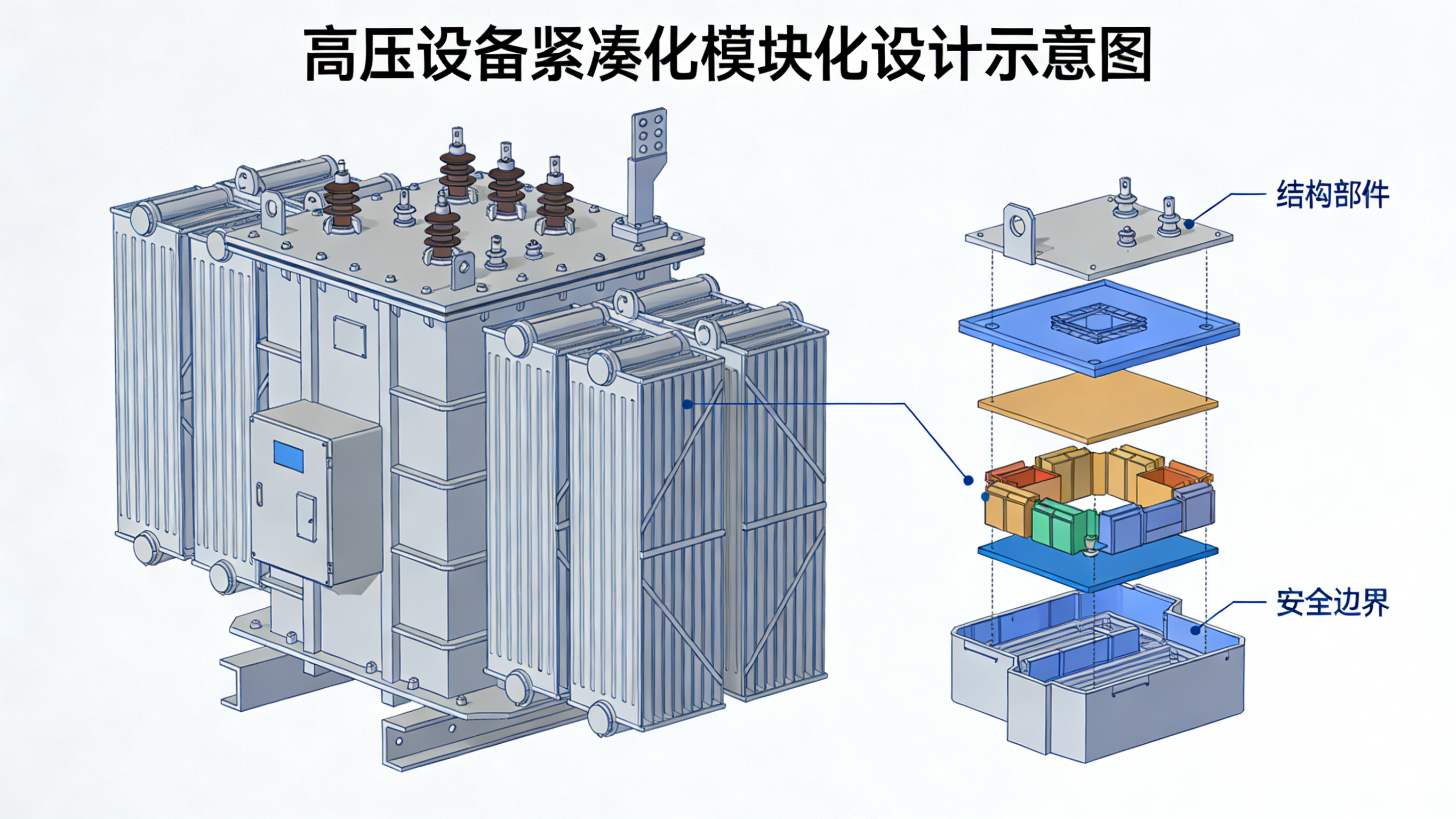

As high-voltage equipment evolves toward compact and modular designs, injection molded parts are no longer only structural components but also key safety boundaries. Through process synergy and application-oriented design, Xiamen Ruicheng helps customers translate material advantages into mass-producible system reliability.From single components to full-system compatibility, PBT insulated injection molded parts have become a strategic design cornerstone for high-voltage equipment.
In which high-voltage electrical equipment are PBT insulated injection molded parts most widely applied?
In high-voltage circuit breakers, relays, and power distribution modules, PBT insulated injection molded parts are extensively used for insulation frames and functional supports, benefiting from the proven electrical stability of polybutylene terephthalate. Based on Xiamen Ruicheng’s mass-production experience, structural designs aligned with high-voltage electrical equipment standards significantly reduce risks of creepage and dielectric breakdown. The maturity of these applications lies in the coordinated control of material properties, electric field distribution, and injection molding processes.
Typical equipment: Internal insulation frameworks of circuit breakers perform multiple electrical isolation functions.

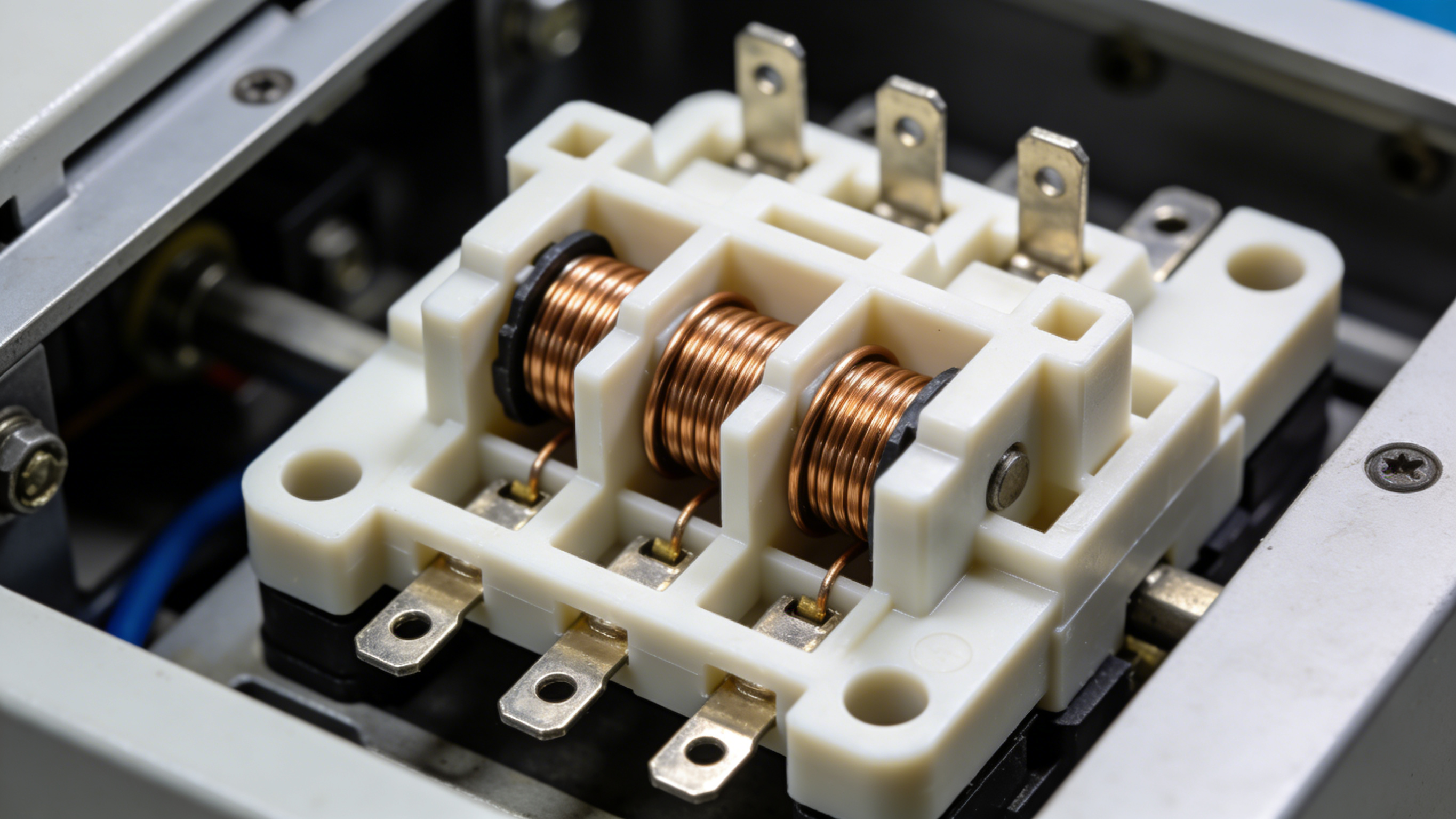

Functional modules: Relay coil supports maintain dimensional stability during long-term switching cycles.

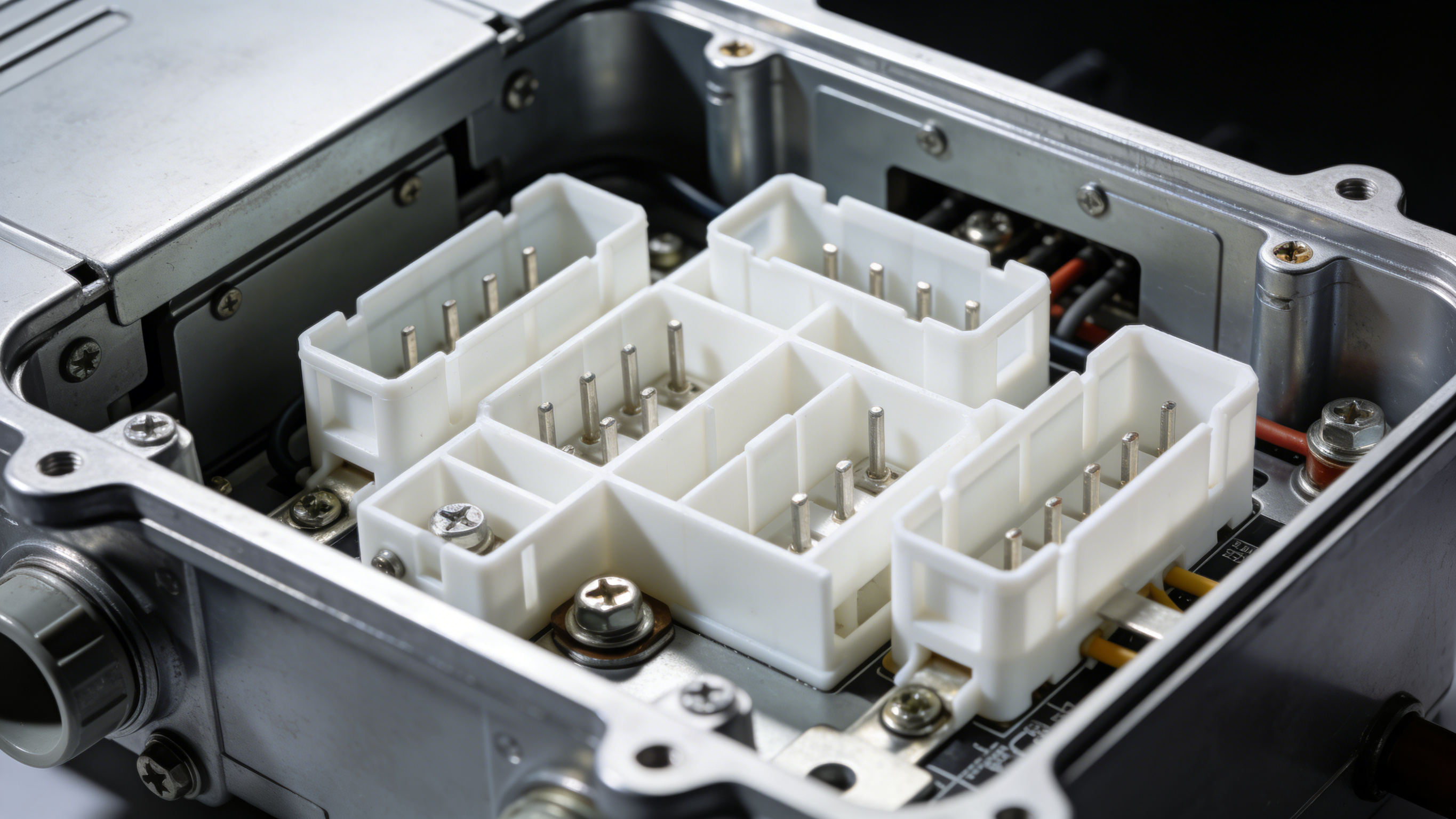

System integration: Distribution unit housings ensure safe electrical clearance within compact layouts.
Engineering practice: Xiamen Ruicheng minimizes redesign risks through early-stage DFM evaluation.
Mature applications are built on a deep understanding of real operating conditions.
How can the long-term reliability of PBT insulated injection molded parts be evaluated in high-voltage environments?

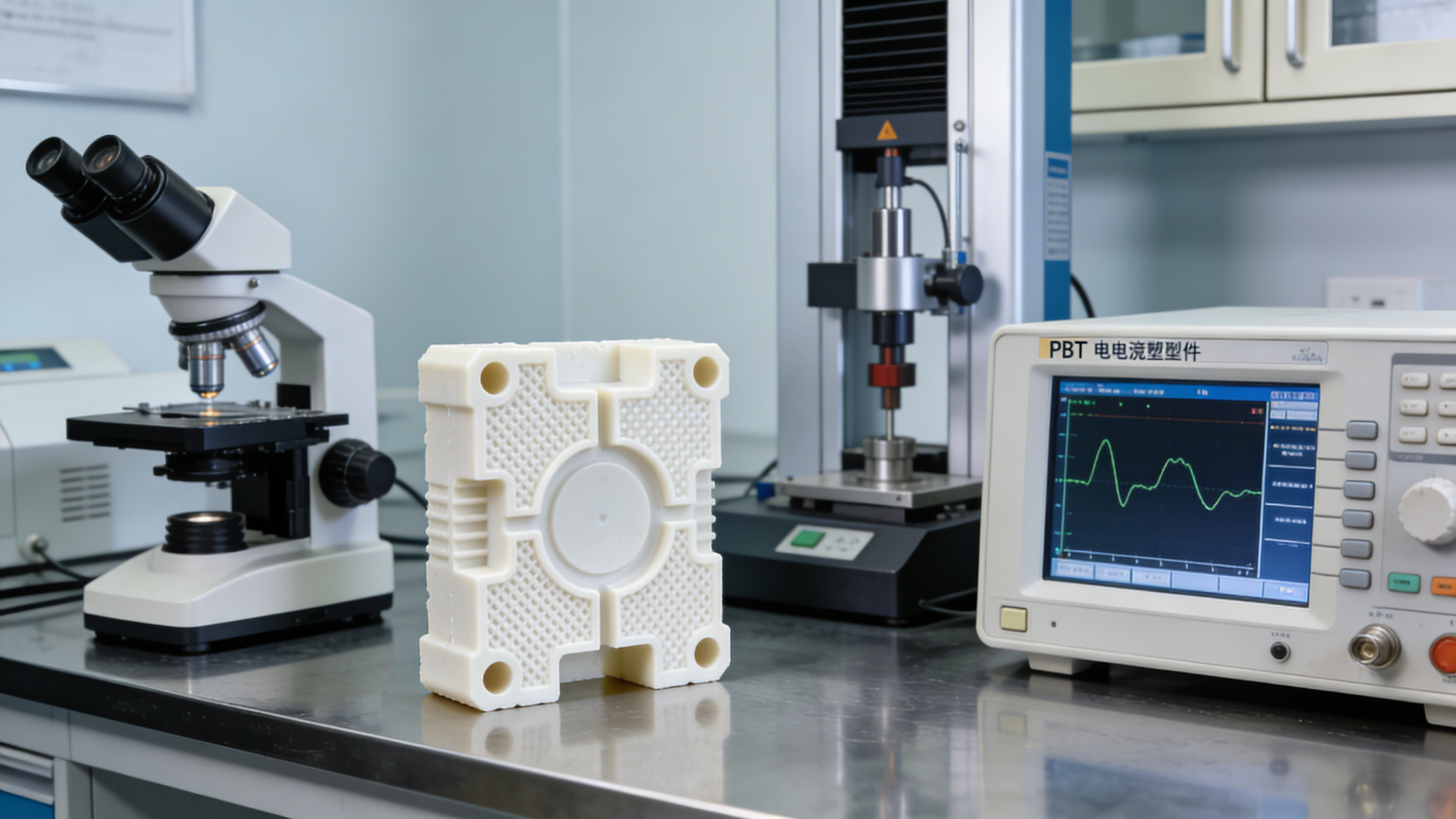

High-voltage equipment operates under combined thermal cycling and electrical stress, requiring PBT insulated injection molded parts to maintain dielectric performance and structural integrity over time. Xiamen Ruicheng evaluates reliability by referencing electrical insulation materials testing systems and aligning with UL certification requirements. Long-term reliability is not defined by a single test result, but by end-to-end quality control throughout the manufacturing process.
Thermal aging validation: Simulates long-term temperature rise effects on insulation performance.
Electrical stress assessment: Dielectric strength and dissipation factor tests ensure safety margins.
Structural stability: Injection process control minimizes internal stress and micro-crack risks.
Batch consistency: Xiamen Ruicheng implements full batch traceability to ensure stable mass production.
Reliability is the result of a repeatable and controlled manufacturing system.
What capabilities should be prioritized when selecting a PBT insulated injection molding supplier?
For high-voltage equipment manufacturers, a supplier’s application-level understanding is more critical than basic material processing capacity. Xiamen Ruicheng emphasizes deep integration of injection molding expertise with electrical safety standards. True value lies in identifying risks early rather than correcting them after production.
Design collaboration: Participation in insulation structure optimization from project initiation.
Process capability: Stable control of crystallinity and dimensional tolerances.
Verification support: Provision of sample testing and performance data feedback.
Long-term partnership: Xiamen Ruicheng supports continuous iteration through sustained cooperation.
Choosing a partner means choosing long-term operational safety.
Application Comparison of PBT Insulated Injection Molded Parts in High-Voltage Electrical Equipment
|
Application Scenario |
Key Requirement |
Typical Function |
Matching Advantage |
| High-voltage circuit breakers | Insulation & heat resistance | Internal framework | Low dielectric loss |
| Power relays | Dimensional stability | Coil support | Creep resistance |
| Power distribution modules | Compact layout | Housing insulation | High CTI |
| Control units | Long-term reliability | Structural components | Mass-production readiness |
For project-specific application evaluations, please contact us
Collaborative Path from Design to Mass Production for PBT Insulated Injection Molding
The value of PBT insulated injection molded parts is not limited to material performance alone, but lies in their integration with high-voltage electrical system design. Xiamen Ruicheng supports customers through early design involvement, process control, and production validation to reduce system risks and shorten development cycles. When material selection and manufacturing capability form a closed loop, product reliability naturally follows.
1.Requirement analysis: Define voltage level and operating environment.
2.Structural co-development: Optimize creepage distance and assembly relationships.
3.Process validation: Lock parameters through trial molding and testing.
4.Mass-production assurance: Establish stable supply and quality traceability.
FAQ
Question 1: What is the core advantage of your PBT insulated injection molded parts?
Answer: Xiamen Ruicheng prioritizes insulation stability and batch consistency, supported by a comprehensive quality control system tailored for high-voltage applications.
Question 2: What information is required before procurement?
Answer: Please provide drawings, voltage ratings, and operating conditions to enable rapid feasibility assessment and quotation.
Question 3: How are delivery times handled for different order volumes?
Answer: Separate capacity planning for pilot runs and mass production ensures reliable delivery within agreed timelines.
Question 4: How are quality issues handled after delivery?
Answer: Clear evaluation standards and response mechanisms ensure traceable and resolvable issues.
Question 5: Do you support customization?
Answer: Yes, material formulations and structural designs can be adjusted for special operating conditions to achieve application-level optimization.
Conclusion
The application of PBT insulated injection molded parts in high-voltage electrical equipment represents a comprehensive balance of material performance, structural design, and manufacturing capability. Xiamen Ruicheng delivers application-oriented injection molding solutions that help customers achieve safety, reliability, and cost efficiency. When a supplier truly understands the operating scenario, insulation components become an integral part of system-level value.
