In gearbox development, gear transmission accuracy directly determines system stability and service life, while early-stage testing errors often stem from mismatched materials and manufacturing methods. Based on extensive project experience, Xiamen Ruicheng has found that selecting the right engineering plastic prototypes can significantly reduce testing costs and improve validation efficiency. By choosing appropriate materials and machining strategies, potential error sources can be identified early in the prototyping phase.
Using metal gears for testing reflects real conditions but comes with high costs and long modification cycles, limiting rapid iteration. In contrast, POM prototypes offer excellent dimensional stability and low friction properties, making them highly suitable for transmission validation. While maintaining precision, POM prototypes provide a more flexible and cost-effective validation pathway.

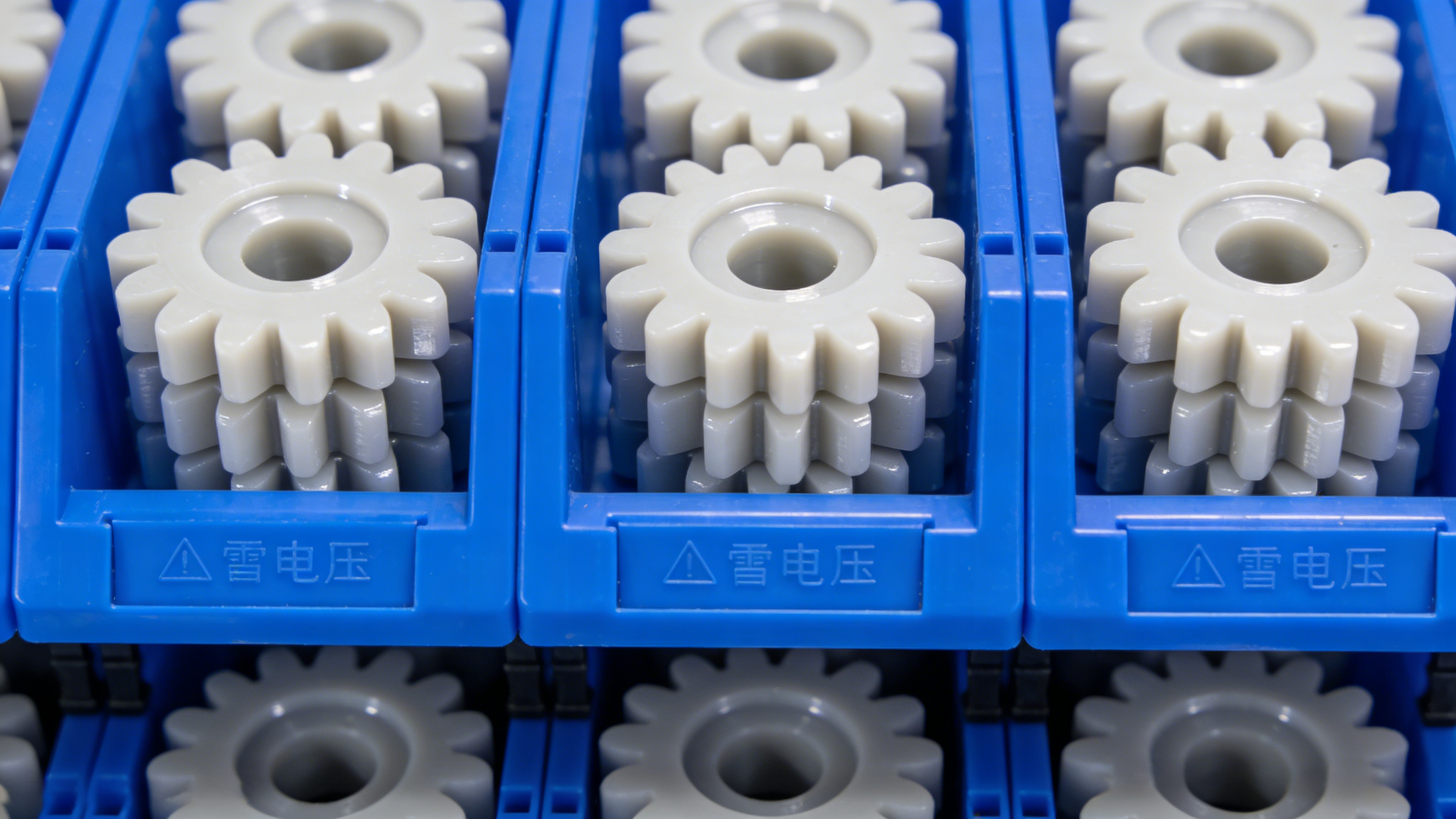

Why Are POM Prototypes Suitable for Gear Transmission Testing?
During gear testing, material stability and friction characteristics significantly affect the results, and POM offers inherent advantages in both mechanical performance and machinability, especially for gear transmission testing and engineering plastics applications. Xiamen Ruicheng leverages precision CNC machining to ensure that POM prototypes closely simulate real working conditions, minimizing test deviations. Applying POM prototypes effectively enhances testing reliability without increasing costs.
Material Stability: POM maintains dimensional accuracy under varying environmental conditions.
Low Friction: Its self-lubricating properties reduce friction-induced testing errors.
Machining Consistency: CNC processing ensures repeatable precision across batches.
Cost Efficiency: Lower cost compared to metal gears with easier design modifications.
POM prototypes provide a stable and efficient foundation for gear validation

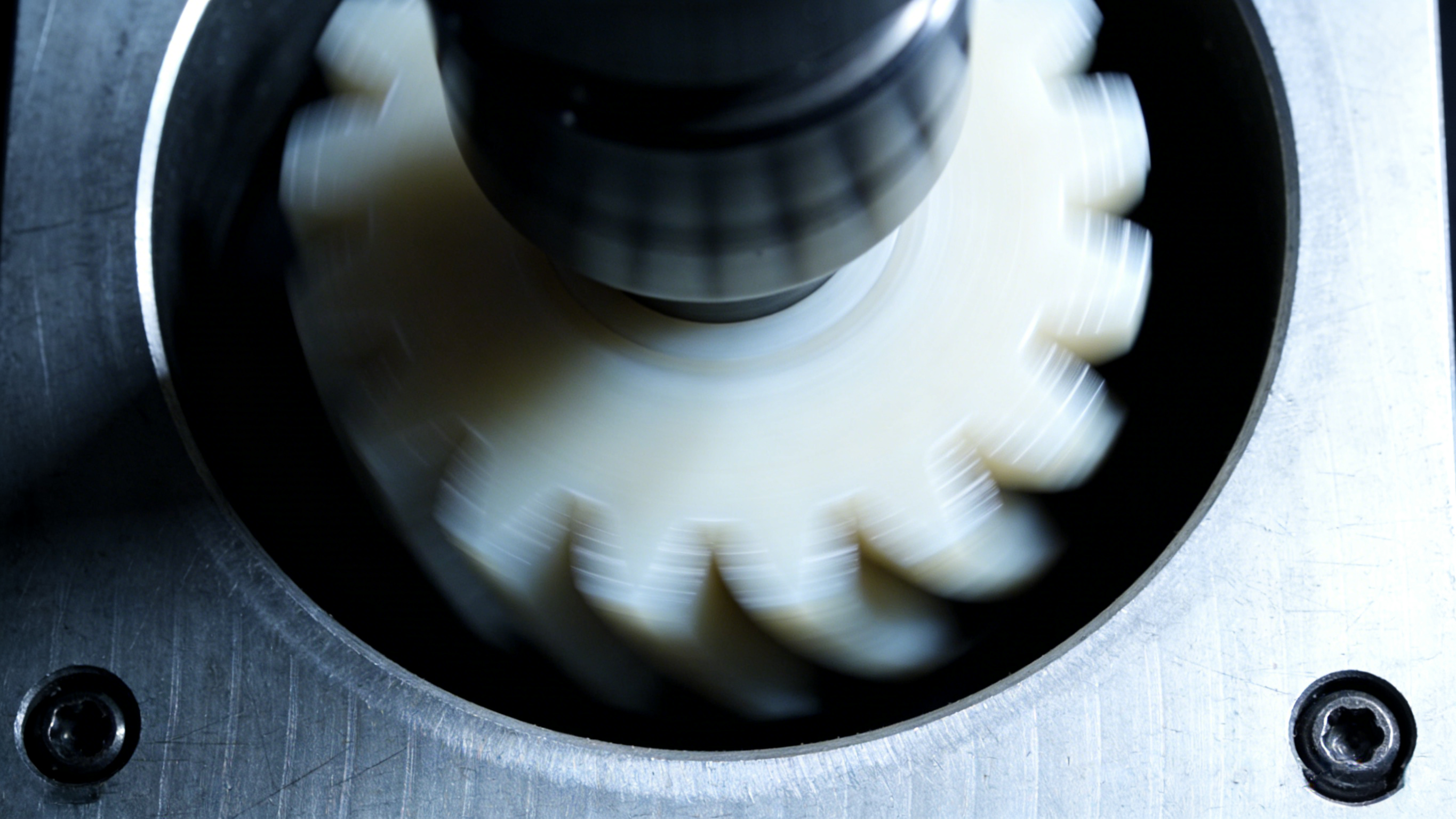

How Does CNC Machining Control Precision Errors in POM Gears?
In rapid prototyping, CNC machining directly determines the dimensional accuracy of POM gears, and optimized cutting strategies can significantly reduce deviation risks. Xiamen Ruicheng applies advanced techniques in numerical control machining and gear manufacturing to ensure precision control from the source. Combining optimized processes with inspection systems effectively stabilizes gear accuracy.
Tool Optimization: Proper tool selection minimizes deformation during cutting.
Path Planning: Optimized toolpaths prevent localized stress concentration.
Inspection Control: CMM inspection ensures tooth profile accuracy.
Batch Consistency: Standardized processes maintain consistency across multiple parts.
Precision machining is the key to minimizing deviation

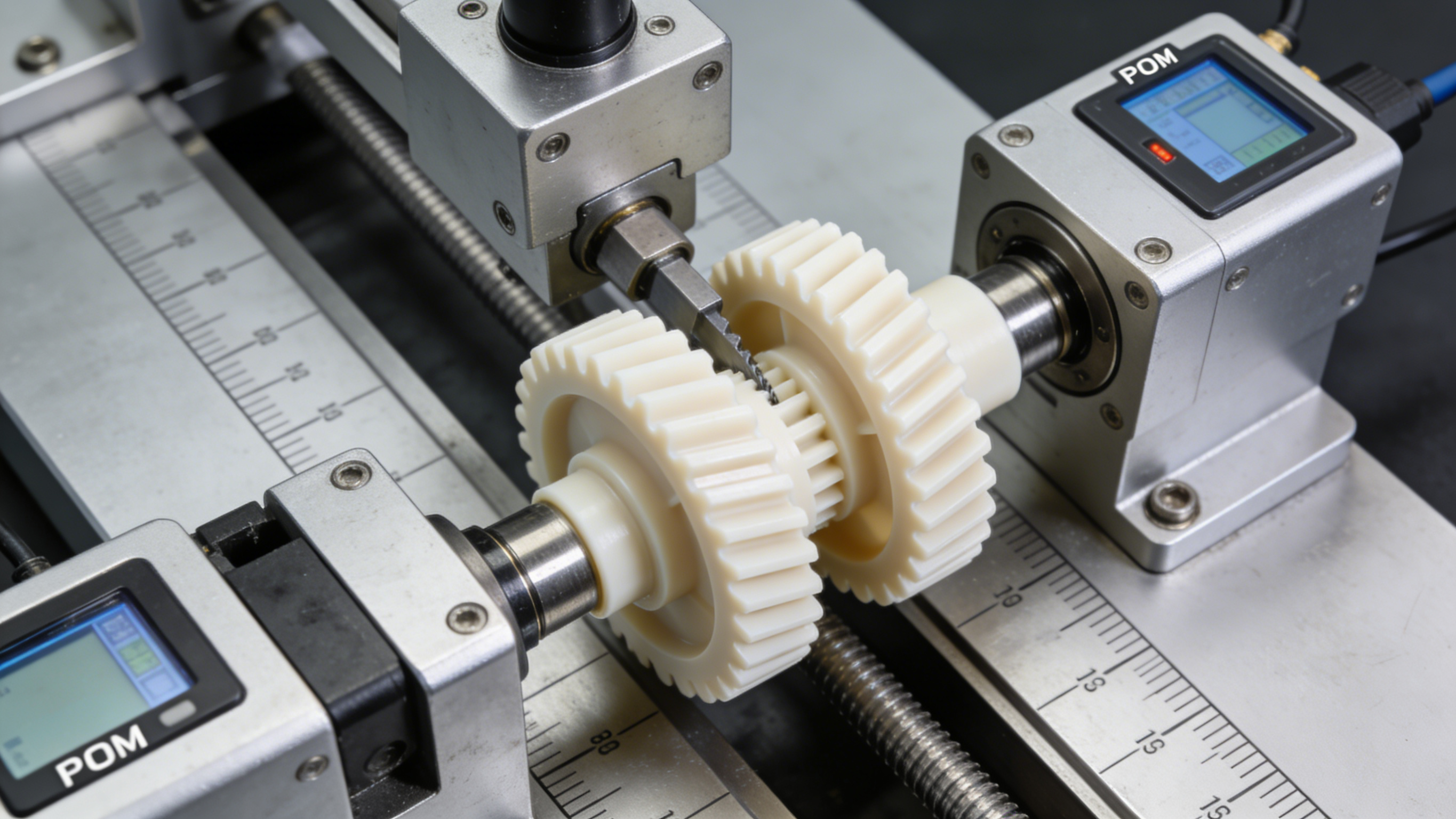

How Do POM Prototypes Help Identify Transmission Issues Early?
In gearbox development, early detection of design flaws is critical, and POM prototypes enable realistic simulation at a lower cost. Xiamen Ruicheng integrates transmission system testing with rapid prototyping to help clients identify issues at an early stage. Using POM prototypes allows early detection of interference, noise, and alignment problems.
Interference Check: Assembly tests reveal gear meshing conflicts.
Noise Evaluation: Low friction helps identify abnormal vibration sources.
Fit Verification: Ensures compatibility with shafts and housings.
Rapid Iteration: Quick redesign and revalidation cycles improve efficiency.
Early validation significantly reduces downstream modification costs
Comparison of POM Prototypes with Other Gear Testing Solutions
|
Criteria |
POM Prototype |
Metal Gear |
3D Printed Gear |
Nylon Gear |
| Precision | High | Very High | Medium | Medium |
| Cost | Low | High | Low | Medium |
| Lead Time | Short | Long | Very Short | Medium |
| Modifiability | High | Low | High | Medium |
| Friction | Excellent | Moderate | Poor | Moderate |
| Testing Suitability | Strong | Strong | Weak | Medium |
Get a customized gear prototype solution to improve validation efficiency and reduce trial costs contact us
From Prototype Validation to Mass Production Transition
In gear development, transitioning from prototype validation to mass production requires structured decision-making support. Xiamen Ruicheng provides integrated services to shorten development cycles and improve success rates. A standardized workflow combined with rapid response ensures every test brings you closer to final production.
1.Requirement Analysis: Define application scenarios and performance targets.
2.Prototype Machining: Deliver high-precision POM gear prototypes.
3.Testing Support: Assist with assembly and transmission validation.
4.Production Transition: Optimize manufacturing based on test results.
FAQ
Question 1: What are the key precision standards of your POM gear prototypes?
Answer: Xiamen Ruicheng delivers POM gear prototypes with tolerances up to ±0.02mm, using high-precision CNC machining and CMM inspection reports to meet strict gearbox testing requirements.
Question 2: What information is required to get a quotation quickly?
Answer: Please provide 2D/3D drawings (STEP/IGES), application conditions, and testing requirements. Initial evaluation is completed within 2 hours, and a detailed quotation is provided within 12 hours.
Question 3: What are the MOQ and lead times for different order quantities?
Answer: MOQ starts from 1 piece, with 5–7 days for prototyping. Batch production lead times depend on quantity, supported by flexible manufacturing capacity.
Question 4: What if there are quality issues or test failures?
Answer: We offer a 7-day inspection window. Confirmed issues are resolved within 48 hours with rework or optimization support, along with full inspection reports.
Question 5: Can you provide customized solutions for special testing environments?
Answer: Yes, we support customization based on temperature, load, and usage conditions. Solutions are provided within 3 working days with optimized performance adjustments.
Conclusion
Choosing the right prototyping solution is critical for improving validation efficiency and controlling development costs in gearbox testing. POM prototypes, with their stability and machining advantages, are an effective solution for reducing testing errors. By combining precision machining with structured validation processes, development success rates can be significantly improved. Xiamen Ruicheng remains committed to delivering reliable rapid prototyping solutions that support customers from validation to mass production.
For expert assistance in implementing for your production needs, visit our resource center or contact us. Let’s help you scale up your manufacturing with precision and efficiency!
