A Logo You Have to Look Twice to See: Laser-Marking Powder-Coated Die-Cast Aluminum

A European tactical brand needed a logo on load-bearing aluminum hardware that reads as sprayed on with the powder coat. We delivered it through a 1 mm design dispute, and turned that dispute into the reason it worked.

02-product-3d-render

TL;DR

  • A European tactical and outdoor brand wanted its logo on die-cast aluminum hardware to look sprayed on with the powder coat: same color, no engraving line, no exposed metal.
  • The hard part is a tone-on-tone laser mark. The beam has to change only the top of the coating without burning through to the aluminum.
  • We solved it at the tooling stage: a molded logo land, 1 mm of slide clearance the client first rejected, and ejector pins placed where finishing hides them.
  • The three-part set is in production, and the mark is holding across the run.

Earlier this year a Xiamen trading company came to us on behalf of a European tactical and outdoor brand. Their product team cared about a finishing detail most suppliers would wave away: the logo on the die-cast aluminum hardware had to look as if it had been applied with the powder coat. Same color, same matte finish, no engraving line, no exposed silver-grey substrate.

Simple on paper, stubborn on the floor. The mark had to stay small, shallow, and consistent across three parts made in three different tools, while those parts carried roughly 50 kg on a webbing sling.

This is the story of how we delivered it. The useful part is the working method, because that is what transfers to your next job.

What we controlled

  • 3 parts, 3 dedicated tools, one coherent finish
  • 45 days from tooling kickoff to T1 sampling
  • 1 mm: the clearance change the client first said no to
  • 4 / 4 / 5 ejector pins, every one in a post-finishing-removable zone
  • Tone-on-tone mark held to low-millimeter logo sizes, confirmed on real parts

Project at a Glance

Industry Tactical & outdoor load-bearing hardware

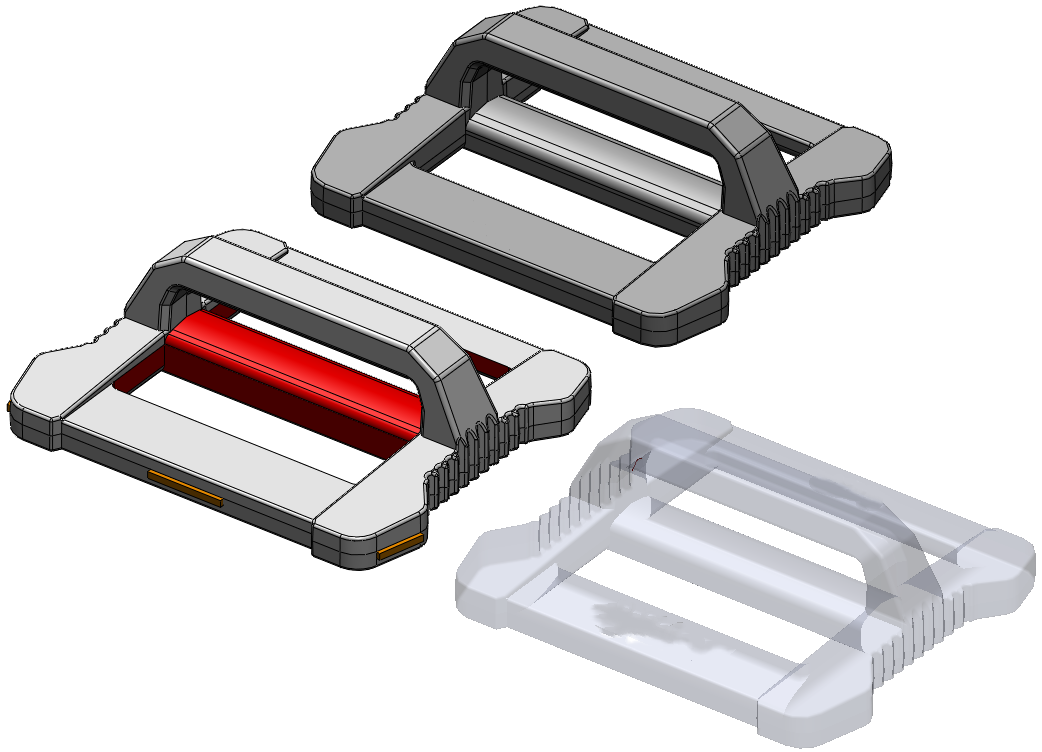

Product Three-part sling hardware set: main slider, retention ring, tri-glide adjuster
Process aluminum die casting with finishing (cold chamber)
Material A380 aluminum alloy
Mold base / core S50C / H13 tool steel (HRC 50–55)
Cavity layout 1 × 2 (two cavities per mold); three dedicated tools, one per part
Surface finish Polish → fine-grit bead-blast (satin matte) → powder coating → tone-on-tone laser marking
Colorway Black / olive drab (matte)
Tooling lead time 45 days + 2–5 days for T1 sampling
Status In mass production at the supplier

What the client actually asked for

The client was not asking for three metal parts. They wanted three parts that read as one coherent product - the kind a customer picks up, runs a thumb across, and trusts. Two things drove the brief:

  • Load and feel. The hardware adjusts and locks a webbing sling that carries real weight. Slider travel had to be smooth, geometry rigid, edges clean. Appearance-grade visible surfaces, no burrs, no tool marks.
  • Invisible branding. This was the line that separated “good enough” from “the brand.” The logo had to sit on the powder-coated surface in the same tone as the coating. Not the dark engraved look of a standard laser mark, and not the bare-aluminum flash you get when a mark cuts through the coat.

Most vendors hear “laser mark the logo” and reach for the default setting. That default fails this job the moment the client picks up a sample.

07-slider-topview

The two problems we had to crack

1. A tone-on-tone mark is a narrow process window, not a setting.

Powder coating is a cured polymer film on the part. A standard laser mark ablates that film and exposes or discolors the aluminum underneath, which reads as a darker, obviously engraved logo. To get a tone-on-tone mark, the laser has to change only the top of the coating without breaching it and reaching the substrate.

The window is unforgiving:

  • Undershoot and the logo is simply not there.
  • Overshoot and the part flashes silver-grey at the logo and is scrap.
  • There is no graceful middle. Once the beam breaches the coating and hits aluminum, the surface absorbs far more energy and the mark turns grey abruptly.

A small, shallow logo makes it tighter still. The mark is only a handful of beam passes wide, edges accumulate more heat than the middle, and the coating is never perfectly uniform across a cast part. Edges, corners, and recesses build differently than flat faces.

2. The tooling fought the marking before marking even started.

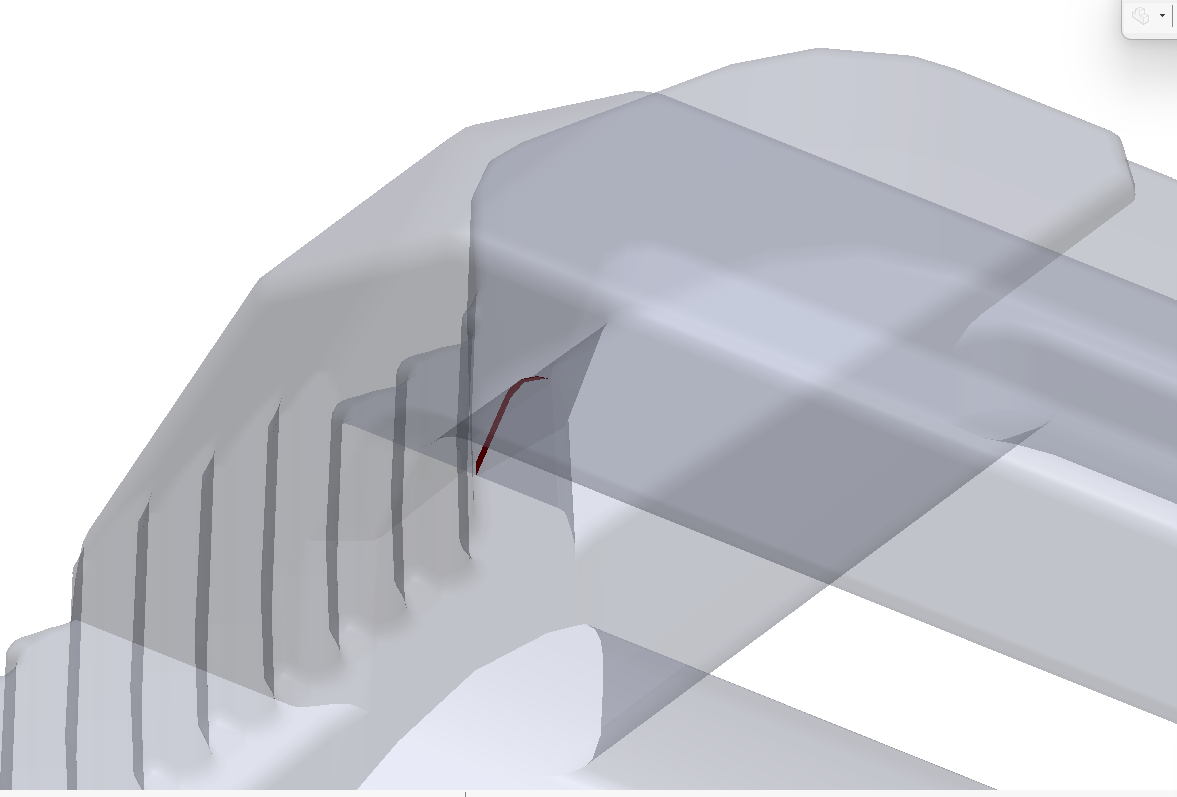

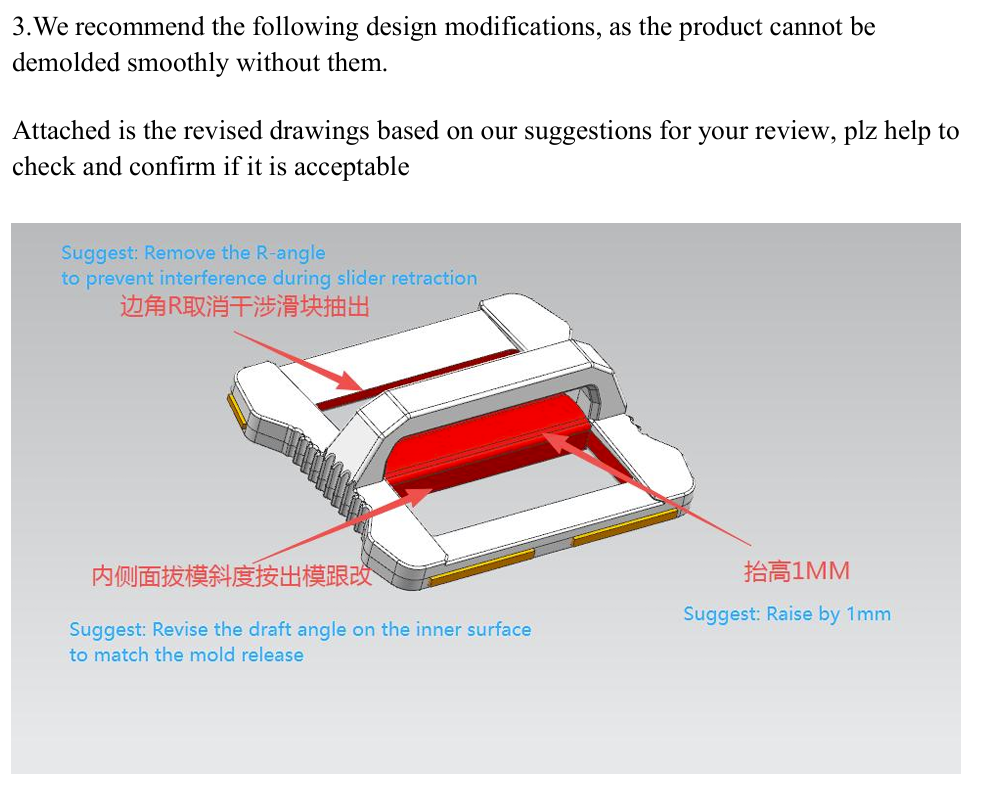

The slider window is formed by a slide (a side-action core), and as originally designed there was no clearance for that slide to withdraw. Our DFM called for raising the center bar by 1 mm to open that clearance. The client’s project engineer pushed back immediately:

*”Position is critical for friction!”*

Project engineer, client side

He was right to ask. That center bar is the surface the webbing bears against, so its height sets how the slider feels in the hand.

If your spec has a marking window this tight, the cheapest place to solve it is at the design stage, before the tool is cut. That is where we start every finishing-sensitive program. Talk to our engineers →

How we delivered it

Two early decisions decided whether the marking could succeed at all. They are the part of this project that transfers to every job like it, and they are easier to understand when you can see the cell that feeds them.

We cast the logo land into the tool. Rather than marking a raw surface and hoping it was consistent, the logo land (the raised flat pad the logo sits on) was built into the mold as a flat, repeatable plane. Every shot arrives at the finisher with the same marking surface, which is the precondition for holding a narrow window across a run, not just on a first article. On any part where the mark has to be invisible-or-scrap, this is standard practice for us. It is the difference between a process and a gamble.

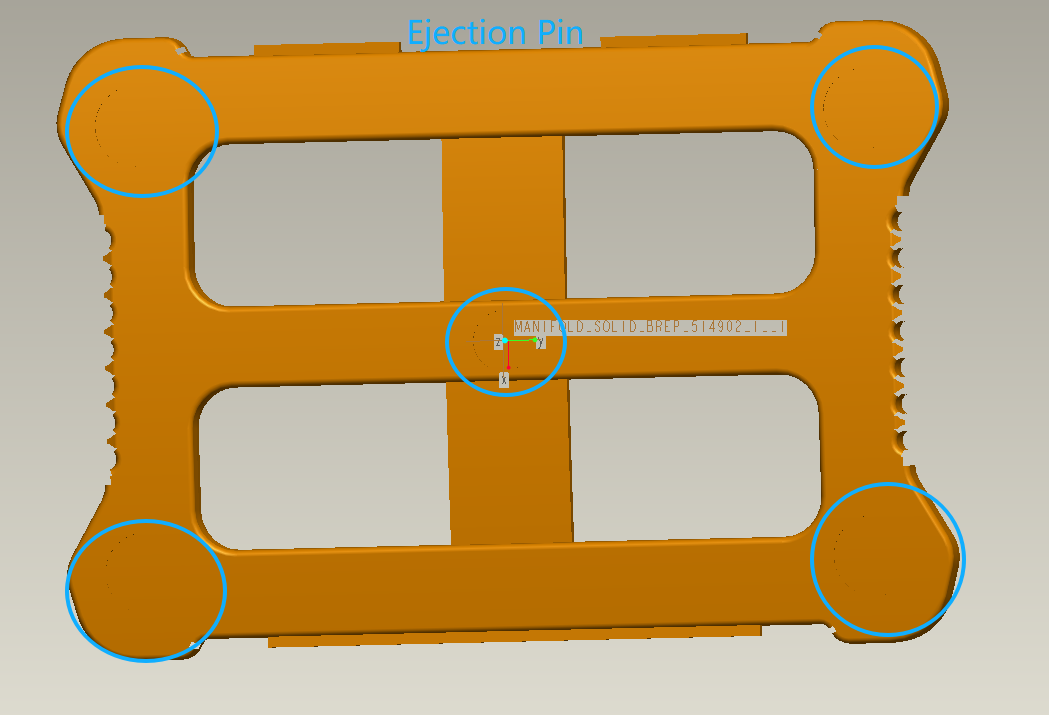

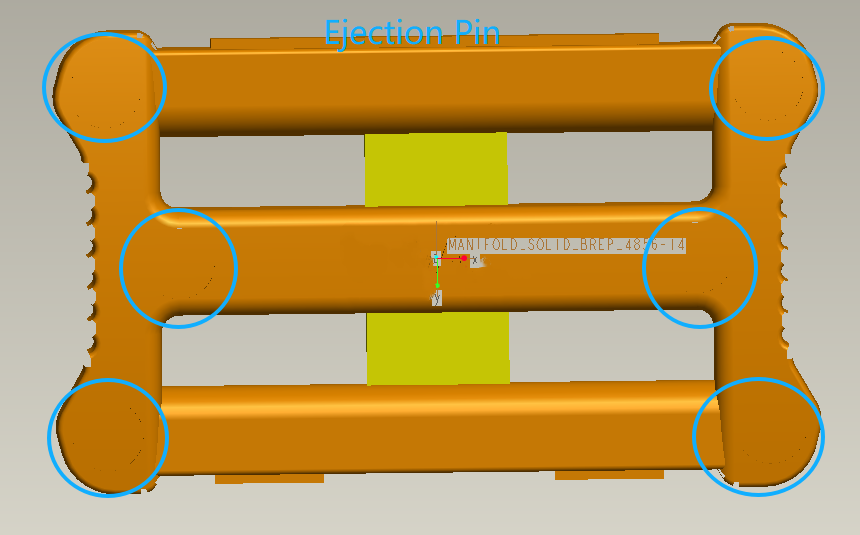

We placed ejector pins where post-processing erases them. All three parts are visible hardware with appearance-grade surfaces, so ejector-pin witness marks had to land where finishing removes them completely. Pin counts across the family were 4, 4, and 5, each position chosen so the finished part shows no trace.

Neither is a marking step. Both are why the marking step could be held. We run tooling, casting, finishing, and marking as one program instead of handing a part between shops and hoping the interfaces hold. Most suppliers treat logo marking as a finishing afterthought. We treat it as a tooling decision, and that is the only way it holds across a run.

How we held the tone-on-tone window

The surface process was a chain, not a single step, so the parameter set was developed as a system instead of by tweaking one knob:

  • Powder coating (base). A matte polyester powder in black or olive drab, built to a controlled film thickness so the mark window is predictable from part to part.
  • Parameter calibration as a system. Power, speed, frequency, and hatch spacing interact; changing one without re-checking the others usually moves the result sideways. We swept settings on first-article parts and locked them once the tone-on-tone window was confirmed by eye and by a rub and abrasion check (cross-hatch adhesion and Taber-style abrasion).
  • Zone compensation. Where the part geometry changes local film build, at edges, corners, and recesses, the marking recipe changes with it rather than forcing one setting across the whole part.
  • Verification on real parts, not coupons. A flat test plaque does not carry the edges, corners, or curvature of the production casting, and it does not distribute film the same way. Final settings were confirmed on actual parts.

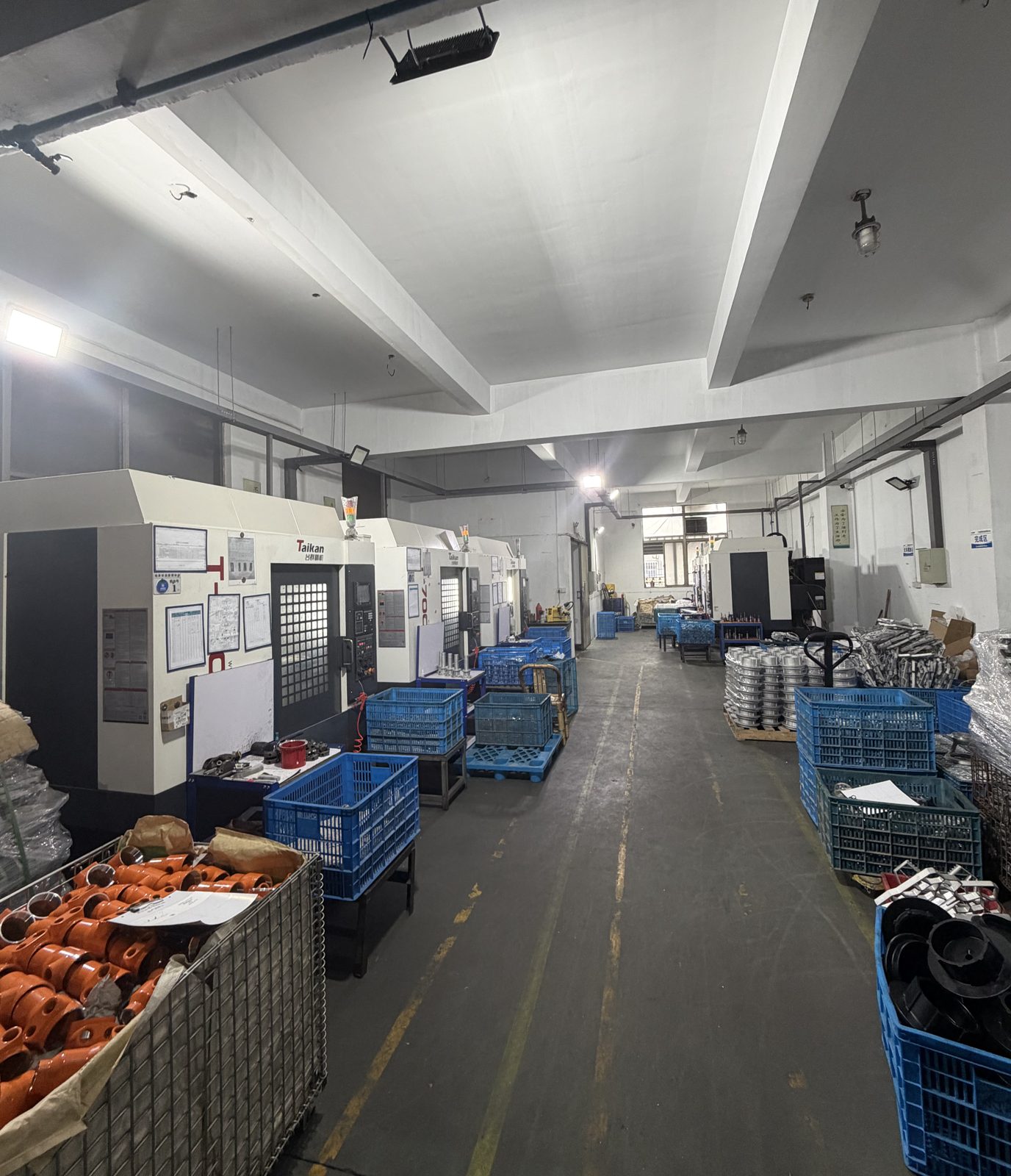

The surface chain is easier to trust when you can see it on the floor, not only in a process note. That is why we show the casting cell, the machining cells, and the finishing line next to the finished result.

So why not just use a standard laser mark or pad printing? Here is the difference:

Marking method Appearance Fit for this job Durability on handled hardware
Standard laser mark Dark, obviously engraved Exposes or discolors the substrate, which is the wrong look High, but wrong look
Pad printing / ink Can match the color Sits on top of the surface and rubs on load-bearing hardware Low; fails under handling
Tone-on-tone laser Same tone as the coat, no line Exactly the brief High; the mark is part of the coating

On some substrates tone-on-tone marking is done by laser annealing, heating the surface to shift its color without removing material, common on anodized aluminum. On a powder-coated part the route is different: the coating is a separate film, so the mark is held by ablating only its top layer while leaving enough behind to keep the original color. That is the harder route, and it is why this requirement is rarely delivered well.

05-slider-ejector-pins

The result has no engraved line to catch a fingernail and no grey flash at the edges. It reads as printed onto the coating rather than etched into it - the look the client was asking for from the start.

This is the level of process control we build into every finishing program, not just the hard ones. If your part needs a brand mark that matches its coating, send the drawing and we will tell you up front whether it is achievable and what it takes to hold it. Start a conversation →

What the client received

The three-part set moved from inquiry to a signed order in early April, through DFM and tooling, and is now in mass production at the supplier. The marking requirement that started as a one-line spec is holding across the run, and the process can now be seen instead of just described.

What that meant in practice:

  • A branding finish that survives handling. The logo is a tone-on-tone mark on load-bearing hardware, not a fragile label that rubs off.
  • Tooling that actually cycles. The 1 mm change that began as a disagreement is what makes the slider windows form and eject cleanly.
  • One accountable partner. Tooling, casting, finishing, and marking handled as one program rather than handed between shops.

The outcome, in program terms:

  • The 1 mm change was resolved at the DFM stage, before the tool was cut, so the 45-day tooling-to-T1 window was not pushed.
  • The tone-on-tone mark held to its first-article spec straight through to the production handoff, with no marking-related rework on the way.
  • One program, one supplier interface: the trading partner coordinated a single point instead of arbitrating between a caster, a coater, and a laser house.

We don’t publish per-part yield, trial-mold counts, or measured tolerances for contracted work. Those sit behind the NDA and are shared with qualified buyers on request.

The 1 mm argument

The client’s project engineer pushed back on our 1 mm DFM proposal with one line: the center bar’s height sets how the slider feels in the hand, and he was protecting that feel. The assembly-drawing evidence we sent back is what turned a flat “no” into a “yes, show me,” and ultimately into the version that shipped.

The tone-on-tone mark is the visible win. The 1 mm argument is the part that shows how the work actually gets done here: we earned the change with evidence instead of overriding the client.

FAQ

What is tone-on-tone laser marking?

A laser mark where the logo ends up the same color as the surrounding coating, with no dark engraved line and no exposed base metal. On a powder-coated part it means ablating only the top of the coating film, which is a narrow and easily-breached window.

Can you do this on any powder coat color?

Yes. Dark or light, the window shifts with film thickness and pigment, so we calibrate the parameter set per color rather than reusing one setting.

How small can the logo be?

It is limited by beam spot size and by how flat and consistent the logo land is. We have held marks in the low-millimeter range; send us the artwork and we will tell you what is achievable on your part.

Does the mark survive abrasion?

Yes. It lives inside the coating, not on top of it, and we verify it with a rub and abrasion check (cross-hatch adhesion and Taber-style abrasion). It isn’t a surface label that lifts off.

How do you keep it consistent across a production run?

A molded logo land gives every shot the same marking plane, the parameter set is locked after first-article confirmation, zone compensation handles geometry changes, and final settings are verified on real parts rather than coupons.

What if my part is made by CNC or extrusion instead of die casting?

Tone-on-tone marking works on coated metal generally. The logo-land-at-tooling trick is specific to die casting; other processes need a flat, consistent surface to mark against, which we design for case by case.

Can you handle tooling, casting, and finishing together?

That is exactly how we run it. One program, one accountable partner, instead of a part handed between shops.

Bring us the hard one

The family is in production and ready for iteration. Additional colorways, a fourth geometry, or a tighter tolerance on the next revision are all straightforward from here.

Not ready to send a drawing yet? Two lower-commitment ways in:

  • See how we handled other finishing-sensitive hardware in more project case studies.
  • Send us the surface spec only, no drawing required, and we will tell you whether tone-on-tone marking is even on the table for your part.

If your part has a marking, coating, or tolerance requirement that “most suppliers” wave away as a finishing detail, that is usually the exact point where a program lives or dies. Send us the drawing and the surface specification, and our engineering team will tell you whether it is achievable on your part and what it takes to hold it in production. Contact us →


Key terms

  • Tone-on-tone laser marking: a mark finished in the same color as the surrounding surface, with no dark line and no exposed substrate.
  • Logo land: the raised, flat pad on the part where the logo is marked; molded into the tool so every shot presents the same marking plane.
  • Powder coating: a cured polymer film applied as a free-flowing powder and baked on, here the base for the tone-on-tone mark.
